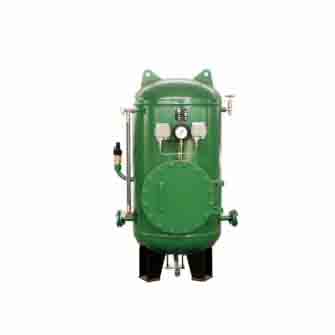

YLG Series Marine Pressure Water Tank
Application
The pressure water tank is suitable for providing fresh water for living and cleaning of ship and drilling platforms.
Main Technical parameters
Capacity: A (0.12m³, 0.2m³, 0.3m³)
B (0.5m³, 1.0m³)
C (0.5m³, 1.0m³, 1.5m³, 2.0m³, 3.0m³)
Working Pressure: 0.6MPa
Design Pressure: 0.7MPa
Strength Test Pressure: 1.05MPa
Tightness Test Pressure: 0.875MPa
Safety valve open pressure: 0.63MPa
Principle Description
This device uses pressured water perstersted by pump provided by shipyard,to compress the air inside of tank,in order to maintain the water in cabinet body under a suitable air pressure.So as to provide fresh water to the crews.
Technical Data
| Type | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | DN | A | B | B1 | C | d | d1 | h1 | h2 | h3 | D2 | L | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.12 | 0.7 | 0.6 | 400 | 608 | 656 | 361 | Φ 18 | 470 | 260 | DN25 | 320 | 1187 | 130 | |||
| 0.2 | 500 | 708 | 756 | 411 | Φ 20 | 600 | 300 | DN20 | 330 | 1304 | |||||||
| 0.3 | 600 | 808 | 856 | 461 | 600 | 300 | 370 | 1358 | |||||||||
| B | 0.5 | 700 | 908 | 1034 | 593 | 830 | 300 | 425 | 1641 | ||||||||
| 1.0 | 900 | 1108 | 1234 | 723 | 950 | 450 | DN40 | DN32 | 525 | 2080 | |||||||
| C | 0.5 | 700 | 908 | 1034 | 593 | Φ 400 | DN32 | DN20 | 425 | 1759 | |||||||
| 1.0 | 900 | 1108 | 1234 | 693 | Φ 630 | 1578 | DN40 | 525 | 2090 | ||||||||
| 1.5 | 1000 | 1208 | 1330 | 744 | Φ 700 | Φ 25 | 1835 | DN32 | 570 | 2252 | |||||||
| 2.0 | 1937 | DN50 | 600 | 2626 | |||||||||||||
| 3.0 | 1200 | 1408 | 1540 | 844 | Φ 840 | 2659 | 3401 |
Note: The description may be different with the product, please contact us for quotation.
