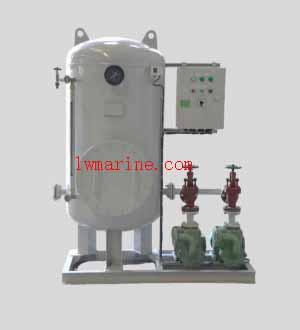

Marine Modular Hydrophore Tank

1. Overview

The ZYG Series Modular Hydrophore Tank compresses internal air via a water pump pumped into the tank (water pump supplied by our company), maintaining water pressure within the required range with stable fluctuations for marine use. It is applicable for domestic seawater, freshwater, and sanitary pipeline water supply on ships and drilling platforms. Also suitable for land – based towerless water supply (e.g., high – rise pipeline pressurization), firefighting pipeline instant water supply, and water mist system pressure maintenance. Customizable volume is available.

2. Model Specification

Model: ZYG – 0.5 – 1P

Number of Pumps: 1P (Single main pump); also available in 2P (Dual pumps, one duty, one standby)
Volume: 0.5m³
Product code: As per model naming
Matching Pump Configuration: Clearly defined as above for different pump – number variants.

3. Technical Features

Control: The pressure controller senses tank pressure to auto – start/stop the water pump for automatic water supply. Factory – set: pump starts at ≤0.2MPa (filling the tank) and stops at 0.4MPa. If pressure exceeds 0.44MPa, the safety valve opens to release pressure. Features include Auto power, frequency operation, auto start/stop for the water pump.
Protection: Overload, short – circuit, sound – light alarm functions are integrated.
Components: Comprises imported pressure controller and solid construction elements.
Stable: Vibration – resistant, shock – resistant, low failure rate, and easy maintenance.
Safety: Pressure Controller: IP30 (IP55 customizable for outdoor use).

Main Technical Parameters

Modular Hydrophore Tank (Single Pump) Dimension Parameters Table

No.	Model	Volume (m³)	Work pressure (Adjustable)	L	W	H	D	h1	h2	a	b	c	D1 Water inlet	D2 Water outlet	D4 Drain outlet	Weight (kg)
1	ZYG – 0.12	0.12	0.4MPa	900	635	1420	512	500	1080	78	253	283	DN32	DN32	G 1″	171
2	ZYG – 0.2	0.2		900	635	1565	512	550	1225	78	253	283				201
3	ZYG – 0.3	0.3		985	735	1598	612	550	1225	85	295	333				248
4	ZYG – 0.5	0.5		1095	835	1766	712	600	1375	115	318	358	DN40		G 1/2″	318
5	ZYG – 1.0	1.0		1308	1035	2070	912	650	1528	128	405	458	DN40			410
6	ZYG – 1.5	1.5		1600	1295	2145	1012	650	1655	145	480	540				598
7	ZYG – 2.0	2.0		1638	1335	2395	1212	700	1775	170	513	583	DN50			694
8	ZYG – 3.0	3.0		1700	1535	2445	1412	750	1825	180	576	671				866

Modular Hydrophore Tank (Dual Pump) Dimension Parameters Table

No.	Model	Volume (m³)	Work pressure (Adjustable)	L	W	H	D	h1	h2	a	b	c	D1 Water inlet	D2 Water outlet	D4 Drain outlet	Weight (kg)
1	ZYG – 0.12	0.12	0.4MPa	1200	635	1420	512	500	1080	78	253	283	DN32	DN32	G 1″	185
2	ZYG – 0.2	0.2		1200	635	1565	512	550	1225	78	253	283				228
3	ZYG – 0.3	0.3		1285	735	1598	612	550	1225	85	295	333				347
4	ZYG – 0.5	0.5		1395	835	1765	712	600	1375	115	318	358	DN40		G 1/2″	435
5	ZYG – 1.0	1.0		1608	1035	2070	912	650	1528	128	405	458	DN40			626
6	ZYG – 1.5	1.5		1900	1295	2145	1012	650	1655	145	480	540				729
7	ZYG – 2.0	2.0		1900	1335	2395	1212	700	1775	170	513	583	DN50			897
8	ZYG – 3.0	3.0		2000	1535	2445	1412	750	1825	180	576	671				1097

Mark: If you have special requirements, we can customize production according to the actual project.

Attention please: The description may be different with the goods, please contact us for confirmation.
