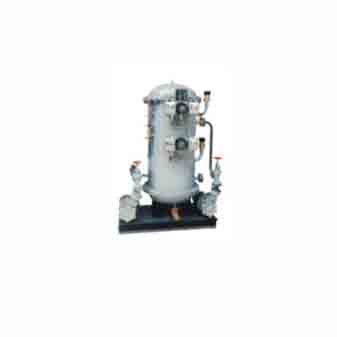

Combined Sea Fresh Water Pressure Tank (ZYG(S) Series)
Model Instruction
ZYG(S)-0.2- Volume: 0.1m³/0.1m³
- Media: Sea water / Fresh water
- Type: Combined pressure water tank
Applicable Scope
This series sea water and fresh water combined pressure water tank, an integration of sea water tank, fresh water tank, pump and valve pipe, is the best water supply unit that is applicable to various types of sea water and fresh water piping water supply systems. They are modular unit, compact structure, beautiful shape and easy installation and maintenance.
Main Technical Parameters
表格
| Model | Volume (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Water Pump Model | Motor Power (kW) | Capacity (m³/h) |
|---|---|---|---|---|---|---|
| ZYG(S)-0.2 | 0.2 | 0.5 | 0.4 | 1.5CWX-2 | 2.2 | 3 |
| ZYG(S)-0.3 | 0.3 | 0.5 | 0.4 | 1.5CWX-2 | 2.2 | 3 |
| ZYG(S)-0.4 | 0.4 | 0.5 | 0.4 | 1.5CWX-2 | 2.2 | 3 |
| ZYG(S)-0.5 | 0.5 | 0.5 | 0.4 | 1.5CWX-2 | 2.2 | 3 |
| ZYG(S)-0.6 | 0.6 | 0.5 | 0.4 | 1.5CWX-2 | 2.2 | 3 |
Basic Dimensions
表格
| Model | DN | Overall Size (mm) | Base Size (mm) | Water Inlet DN | Water Outlet of Upper Tank DN | Water Outlet of Nether Tank DN | Draining Outlet DN | |||
|---|---|---|---|---|---|---|---|---|---|---|
| L | B | H | a | b | ||||||
| ZYG(S)-0.2 | 500 | 1150 | 720 | 1596 | 1050 | 600 | 40 | 25 | 25 | 20 |
| ZYG(S)-0.3 | 500 | 1135 | 735 | 2077 | 1050 | 600 | 40 | 25 | 25 | 20 |
| ZYG(S)-0.4 | 600 | 1240 | 756 | 1920 | 1080 | 600 | 40 | 25 | 25 | 20 |
| ZYG(S)-0.5 | 650 | 1306 | 895 | 1982 | 1190 | 780 | 40 | 32 | 32 | 20 |
| ZYG(S)-0.6 | 650 | 1306 | 895 | 2220 | 1190 | 780 | 40 | 32 | 32 | 20 |
Structure (Legend)
- Base
- Water pump
- Stop-check valve
- Stop-check valve
- Liquid level meter
- Pressure meter
- Nameplate
- Pressure controller
- Safety valve
- Drain cock
- Body
- Stop valve
Note: The description may be different with the product, please contact us for quotation.
