Pressure water tank for ship
Application

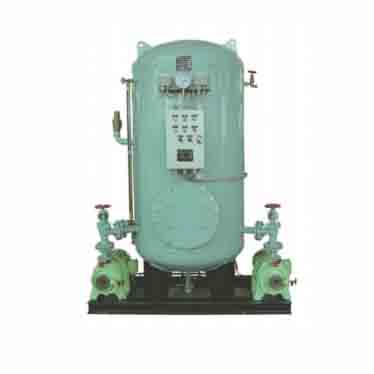

This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes, pumps, pressure switch, electric control box and hydrophone are installed together. It is compact and beautiful appearance, easy to install and maintain, and it is an ideal unit for water supply system.
Structure
- Safety Valve
- Pressure Gauge
- Pressure Controller
- Gas Charging
- Liquid Level Indicator
- Main Body
- Disconnecting-check Valve
- Water Pump
- Discharge Valve
- Electric Control Box
①D1 Water Inlet
②D2 Water Outlet
③D3 Discharge Valve
Technical Data
| Model | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1.0 | 1.5 | 2.0 | 3.0 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1.0 | 1.5 | 2.0 | 3.0 |
| Working Pressure(MPa) | 0.6 | ||||||||
| Design Pressure (MPa) | 0.7 | ||||||||
| Safety valve open Pressure (Mpa) | 0.63 | ||||||||
| Pump Model | 1.5CWX-2 | 1.5CWX-4 | |||||||
| Flow (m³/h) | 3 | 10 | |||||||
| Suction head (m) | 40 | ||||||||
| Power (kW) | 2.2 | 4 | |||||||
| Weight (kg) | 300 | 320 | 360 | 420 | 430 | 450 | 500 | 540 | 600 |
| DN | 500 | 500 | 600 | 700 | 700 | 900 | 1000 | 1200 | 1400 |
| A | 1190 | 1190 | 1316 | 1424 | 1450 | 1595 | 1530 | 1630 | 1750 |
| A1 | 630 | 630 | 694 | 745 | 760 | 799 | 765 | 815 | 875 |
| A2 | 781 | 781 | 921 | 1061 | 1150 | 1248 | 1366 | 1450 | 1560 |
| B1 | 414 | ||||||||
| B2 | 368 | ||||||||
| B3 | 600 | 648 | 750 | 710 | 810 | 910 | 965 | 1050 | |
| B4 | 325 | 325 | 375 | 395 | 405 | 455 | 482 | 525 | |
| h1 | 280 | 280 | 370 | 405 | 370 | 370 | 370 | 370 | |
| h2 | 415 | 415 | 462 | 506 | 495 | 495 | 748 | 822 | |
| h3 | 988 | 988 | 1045 | 1295 | 1390 | 1490 | 1563 | 1630 | |
| h4 | 1098 | 1098 | 1135 | 1385 | 1490 | 1580 | 2036 | 2120 | |
| H | 1350 | 1380 | 1455 | 1810 | 1980 | 2000 | 2455 | 2560 | 2680 |
| D1 | DN40 | DN50 | |||||||
| D2 | DN40 | ||||||||
| D3 | 3/4″ | 1″ |
Note: The description might be incorrect, please contact us for confirmation.
