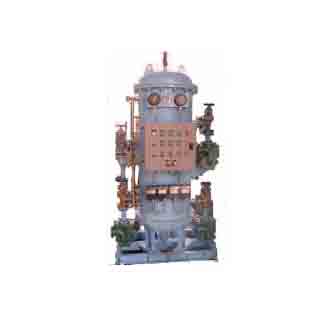

PRESSURE WATER TANK
- This series is applicable to fresh – water pipe systems for domestic fresh water and sanitary water.
- This series pressure cabinet is suitable for tube systems for daily fresh water and sanitary water.
- The types and basic dimensions of the pressure tank are shown in the table and attached figures.
- As for the construction and main dimension of pressure cabinet, please refer to Table and figure.
- Structure of the pressure tank:
- Body: Body
- Liquid indicator: Liquid indicator
- Safety valve: Safety valve
- Pressurizing valve 5, Pressurizing valve 6, Pressure relay 7, Relief valve: Pressurizing valve 5, Pressurizing valve 6, Pressure relay 7, Relief valve
- Man – hole cover: Man – hole cover
Table: Basic Dimensions of Pressure Water Tank
| Volume (m³) | A | B | D | H | d | d1 | h1 | h2 | h3 | L2 | B1 | B2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.12 | 600 | 652 | 450 | 896 | 32 | 20 | 250 | 320 | 70 | 240 | w | w |
| 0.2 | 708 | 652 | 500 | 1167 | 32 | 20 | 260 | 550 | 90 | 320 | w | w |
| 0.3 | 782 | 950 | 600 | 1481 | 32 | 20 | 600 | w | 100 | 870 | w | w |
| 0.5 | 852 | 823 | 700 | 1612 | 40 | 32 | 410 | 700 | 100 | 460 | w | w |
| 1.0 | 1150 | 1260 | 900 | 2007 | 50 | 23 | w | w | w | 600 | w | w |
| 1.5 | 1160 | 1159 | 1000 | 2560 | 65 | 32 | 550 | w | w | 590 | 420 | 190 |
| 2.0 | 1376 | 1425 | 1200 | 2120 | 65 | 50 | 550 | w | 120 | 660 | 500 | 240 |
| 3.0 | 1376 | 1425 | 1200 | 2970 | 80 | 50 | 550 | w | 120 | 660 | 500 | 240 |
Note: These dimensions are for reference only. For specific dimensions, please inquire.
Attention please: The description may be different with the goods, please check with us when order.
