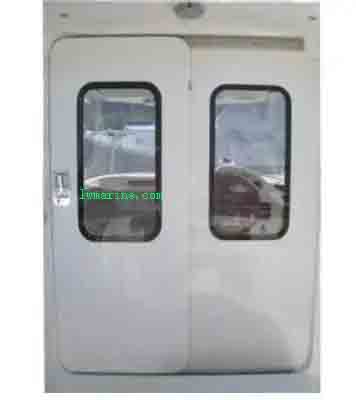

Wheelhouse Sliding Door
Wheelhouse Sliding Door
CBM2055-82
Desinged according to international standards with low noisy & light opening.

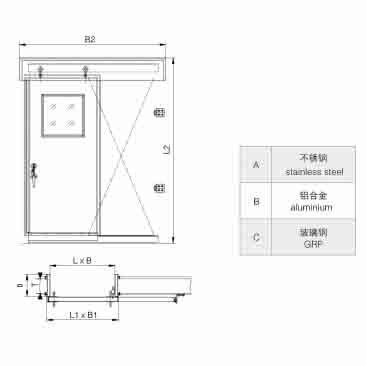

| Type | Nominal size L×B | Cutout in steel wall L1×B1 | External size L2×B2 | Lining thickness T | Frame depth D | Opening | Weight kg | ||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | |||||||
| A Stainless steel |
1700 × 750 | 1765 × 815 | 2250 × 1860 | Up to buyer’s choice | T+50 | Left L Right R |
56 | 42 | 40 |
| B Aluminium |
1700 × 900 | 1765 × 965 | 2250 × 2160 | Up to buyer’s choice | T+50 | Left L Right R |
62 | 48 | 46 |
| C GRP |
1800 × 900 | 1865 × 965 | 2350 × 2160 | Up to buyer’s choice | T+50 | Left L Right R |
66 | 52 | 50 |
| 1800 × 1000 | 1865 × 1065 | 2350 × 2360 | Up to buyer’s choice | T+50 | Left L Right R |
72 | 58 | 56 |
Identification example
Stainless steel wheelhouse sliding door, clear size of 1800×900, frame depth of 200mm, left opening;
Wheelhouse sliding door A1800×900×200L CBM2055-82.
Note: The description may be different with the product, please contact us for quotation.
