MARINE WEATHERTIGHT SINGLE-LEAF ALUMINIUM DOOR

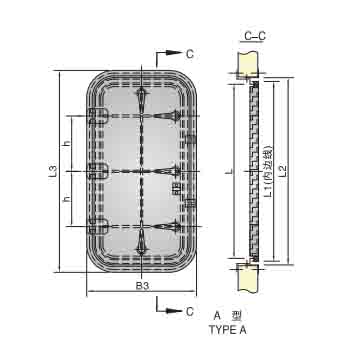

[Two cross – sectional diagrams labeled C – C for TYPE A and TYPE B. TYPE A diagram shows a frame – type marine weathertight single – leaf aluminium door with dimensions labeled h, L3, B3, L, L1 (inner edge), L2, B (inner edge). TYPE B diagram shows a pressed – type marine weathertight single – leaf aluminium door with similar dimension labels.]
| Type | Name | Size of Doorway BXL | Optional Items |
|---|---|---|---|
| A | Frame – type Marine Weathertight Single – leaf Aluminium Door | 500X1000, 500X1200, 600X1200, 600X1400, 650X1600 | Hook, Bumper, Portlight |
| B | Pressed – type Marine Weathertight Single – leaf Aluminium Door | 500X1000, 500X1200, 600X1200 |
| Size of Doorway BXLXR | Frame Size (Inner Edge) B1XL1XR1 | Size of B.H Opening B2XL2XR2 | Outer Size B3XL3XR3 | Handle Position Dimension h | Number of Handles | Weight (KG) |
|---|---|---|---|---|---|---|
| 500X1000X100 | 540X1040X120 | 580X1080X140 | 654X1154X177 | 300 | 4 | 23 (Type A), 21 (Type B) |
| 500X1200X100 | 540X1240X120 | 580X1280X140 | 654X1354X177 | 400 | 5 | 27 (Type A), 25 (Type B) |
| 500X1400X100 | 540X1440X120 | 580X1480X140 | 654X1554X177 | 500 | 5 | 30 (Type A), 27 (Type B) |
| 600X1200X100 | 640X1240X120 | 680X1280X140 | 754X1354X177 | 400 | 5 | 33 (Type A), 30 (Type B) |
| 600X1400X100 | 640X1440X120 | 680X1480X140 | 754X1554X177 | 500 | 5 | 36 (Type A), 33 (Type B) |
| 650X1600X100 | 690X1640X120 | 730X1680X140 | 804X1754X177 | 600 | 5 | 39.5 (Type A), 36 (Type B) |
Marking Example:
For a Type A left – outer opening marine weathertight single – leaf aluminium door with a doorway size of 600X1400mm: Marine weathertight single – leaf aluminium door A600X1400 – 6.1 CB/T 454 – 1997.
