QUICK OPEN & CLOSE WEATHERTIGHT ALUMINIUM DOOR

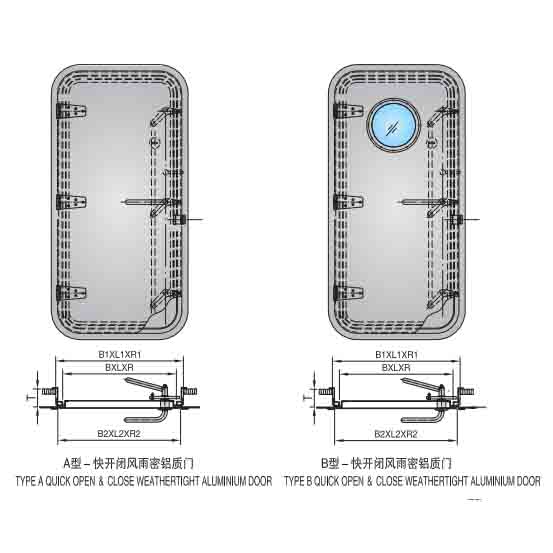

[Two technical diagrams: left is “Type A – Quick Open & Close Weathertight Aluminium Door”, right is “Type B – Quick Open & Close Weathertight Aluminium Door”. Each diagram shows a top – view and a side – view with dimensions labeled as B1XL1XR1, BXLXR, B2XL2XR2.]
| Type | Size of Doorway BXLXR | Size of B.H. Opening B1XL1XR1 | Size of Door B2XL2XR2 | Thickness of Door Leaf (mm) | Weight (KG) | Optional Items |
|---|---|---|---|---|---|---|
| A | 600X1200X100 | 680X1280X140 | 648X1248X124 | 4 | 32 | Door hook, Bumper |
| 650X1600X100 | 730X1680X140 | 698X1648X124 | 35 | |||
| 650X1600X100 | 730X1680X140 | 698X1648X124 | 38 | |||
| 700X1600X100 | 780X1680X140 | 748X1648X124 | 39 | |||
| B | 600X1200X100 | 680X1280X140 | 648X1248X124 | 4 | 34 | |
| 650X1400X100 | 730X1480X140 | 698X1448X124 | 37 | |||
| 650X1600X100 | 730X1680X140 | 698X1648X124 | 38 (or 40 in some cases as per table nuance) | |||
| 700X1600X100 | 780X1680X140 | 748X1648X124 | 41 |
Marking Example:
For a Type A quick open & close weathertight aluminium door with a doorway size of 650X1600 (left – outer opening type): Quick open & close weathertight aluminium door A650X1600 – 6.1 JY015D – 00.
Attention please: The description might be incorrect, please contact us for confirmation.
