QUICK OPEN & CLOSE WEATHERTIGHT STEEL DOOR (FLUSH TYPE)
JY015 – 001 – 00

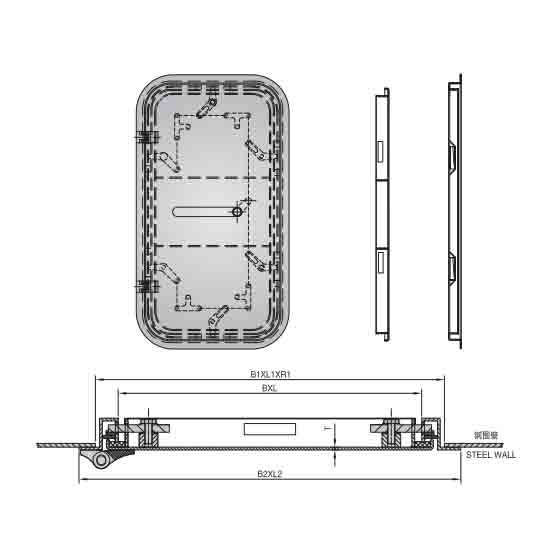

[Two diagrams: the upper one is a top – view of the door with labels B1XL1XR1, BXL; the lower one is a side – view with labels B2XL2, and shows the installation on a steel wall]
| Size of Doorway BXL | Size of B.H Opening B1XL1XR1 | Frame Size B2XL2 | Thick. of Door Leaf (mm) | Weight (KG) | Option |
|---|---|---|---|---|---|
| 6 | 8 | ||||
| 600X1650 | 720X1770X160 | 786X1836 | 166 | 191 | Bumper, Door closer, C2 lock, ISPS device, Limit switch, Port light |
| 650X1650 | 770X1770X160 | 836X1836 | 177 | 205 | |
| 700X1650 | 820X1770X160 | 886X1836 | 188 | 219 |
Marking Examples:
Doorway size 650X1650, door panel thickness 6mm, quick open&close weathertight steel door (flush – type, left – opening): Quick open&close weathertight steel door (flush – type) 650X1650 – 6 – 6.1 JY015 – 001 – 00
Attention please: The description might be incorrect, please contact us for confirmation.
