QUICK OPEN & CLOSE WEATHERTIGHT STEEL DOOR (HAND WHEEL TYPE)
JY015 – 002 – 00

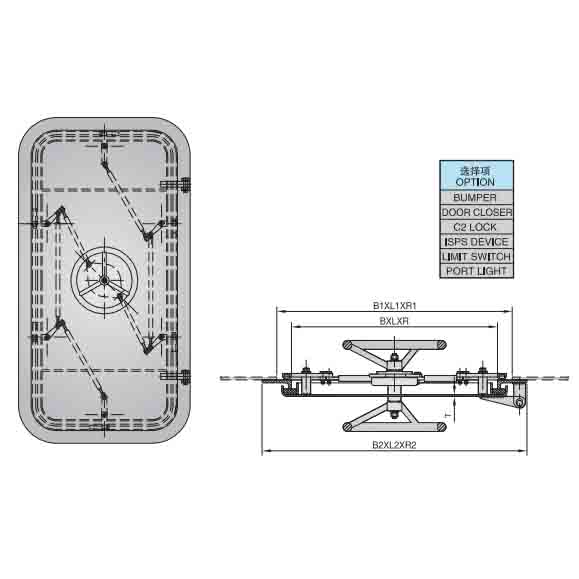

[Two diagrams: left is a top – view of the door with labels B1XL1XR1, BXLXR; right is a side – view with labels B2XL2XR2, and shows the hand – wheel operating mechanism]
Optional Items
- Bumper
- Door closer
- C2 lock
- ISPS device
- Limit switch
- Port light
| Size of Doorway BXLXR | Size of B.H. Opening B1XL1XR1 | Size of Outline B2XL2XR2 | Thickness of Door Leaf T (mm) | Weight (kg) |
|---|---|---|---|---|
| 6 | 8 | |||
| 600X1500X100 | 700X1600x150 | 800X1700X200 | 145 | 166 |
| 600X1600X100 | 700X1700x150 | 800X1800X200 | 154 | 176 |
| 700X1500X100 | 800X1600x150 | 900X1700X200 | 167 | 191 |
| 700X1600X100 | 800X1700x150 | 900X1800X200 | 174 | 199 |
| 700X1700X100 | 800X1800x150 | 900X1900X200 | 183 | 210 |
| 800X1500X100 | 900X1600x150 | 1000X1700X200 | 208 | – |
| 800X1600X100 | 900X1700x150 | 1000X1800X200 | 223 | – |
| 800X1700X100 | 900X1800x150 | 1000X1900X200 | 249 | – |
Marking Examples:
Doorway size 600X1600, door panel thickness 8mm, quick open&close weathertight steel door (hand – wheel type, right – outer opening): Quick open&close weathertight steel door (hand – wheel type) 600X1600 – 8 – 5.1 JY015 – 002 – 00
Attention please: The description might be incorrect, please contact us for confirmation.
