STEEL QUICK ACTION WEATHERTIGHT DOOR/WATERTIGHT DOOR
JY015A-00 JY015M-00
These two type doors could be used as both weathertight and watertight door while used as watertight door, the pressure no more than 0.07MPa.

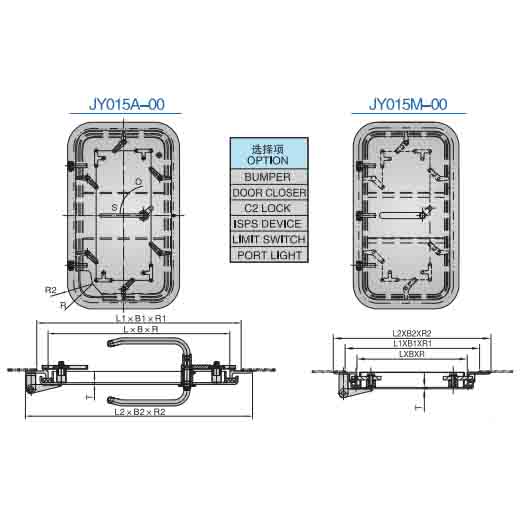

[Two diagrams labeled JY015A-00 and JY015M-00 showing different views of the doors with dimensions and parts labeled such as bumper, door closer, C2 lock, ISPS device, limit switch, port light]
JY015A-00
[Diagram with dimensions R2, R, L1×B1×R1, L×B×R, L2×B2×R2]
JY015M-00
[Diagram with dimensions L2×B2×R2, L1×B1×R1, L×B×R]
Optional Items
- Bumper
- Door closer
- C2 lock
- ISPS device
- Limit switch
- Port light
| Size of Doorway L×B×R | Size of B.H Opening L1×B1×R1 | Size of Outline L2×B2×R2 | Thickness T (mm) | Weight (kg) |
|---|---|---|---|---|
| 6 | 120 (for JY015A-00: 262WHL003A-00; for JY015M-00: 262WHL003M-00) | |||
| 1400×600×R100 | 1500×700×R150 | 1600×800×R200 | 8 | 129 (JY015M-00) |
| 1400×900×R100 | 1500×1000×R150 | 1600×1100×R200 | 6 | 145 (JY015A-00), 160 (JY015M-00) |
| 8 | 175 (JY015A-00), 185 (JY015M-00) | |||
| 1600×600×R100 | 1700×700×R150 | 1800×800×R200 | 6 | 126 (JY015A-00), 137 (JY015M-00) |
| 8 | 144 (JY015A-00), 155 (JY015M-00) | |||
| 1600×750×R100 | 1700×850×R150 | 1800×950×R200 | 6 | 147 (JY015A-00), 161 (JY015M-00) |
| 8 | 172 (JY015A-00), 186 (JY015M-00) | |||
| 1600×900×R100 | 1700×1000×R150 | 1800×1100×R200 | 6 | 163 (JY015A-00), 178 (JY015M-00) |
| 8 | 191 (JY015A-00), 206 (JY015M-00) |
Marking Examples:
- Doorway size 1600×600, door panel thickness 8mm, steel watertight door (left-opening type): Steel quick-action watertight door 1600×600-8-6.1 JY015A-00
- Doorway size 1600×750, door panel thickness 8mm, steel quick-action watertight door (left-opening type): Steel quick-action watertight door 1600×750-8-6.1 JY015M-00
