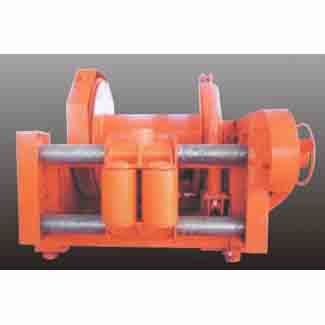

Waterfall Type Winch
Technical Specification
| Model | Nominal Pulling Force (KN) | Holding load (KN) | Speed (m/min) | Rope Length (m) | Size A | Size B | Size C | Size D | Size E | Size H | Weight (ton) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WHW-50 | 500 | 1000 | 10 | 36 × 1000 | 5100 | 2900 | 680 | 1520 | 1200 | 1980 | 22 |
| WHW-75 | 750 | 1450 | 9 | 44 × 1200 | 6000 | 3050 | 800 | 1800 | 1380 | 2400 | 28 |
| WHW-100 | 1000 | 1800 | 6 | 52 × 1200 | 6450 | 3960 | 880 | 1960 | 1500 | 2800 | 34 |
| WHW-125 | 1250 | 2200 | 6 | 56 × 1200 | 6800 | 4200 | 920 | 2170 | 1650 | 2950 | 38 |
| WHW-150 | 1500 | 2650 | 5 | 60 × 1200 | 7080 | 4400 | 960 | 2360 | 1750 | 3150 | 42 |
| WHW-175 | 1750 | 3000 | 5 | 64 × 1200 | 7300 | 4660 | 1020 | 2480 | 1890 | 3350 | 48 |
| WHW-200 | 2000 | 3200 | 5 | 68 × 1200 | 7550 | 4980 | 1080 | 2600 | 2000 | 3500 | 53 |
Attention please: The description may be different with the product, please contact us for quotation.
