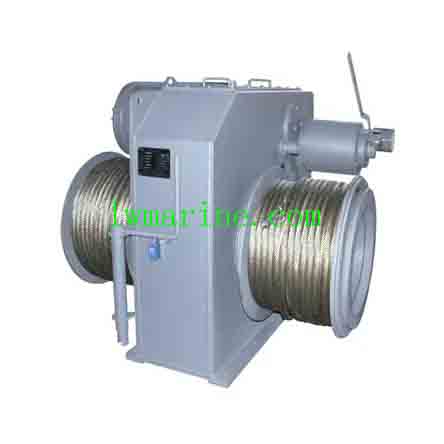

Rescue Boat Winch for Marine Davit Systems
Our Rescue Boat Winch is a top-tier marine winch specifically designed for use with rescue boat davits, ensuring swift and secure deployment and retrieval of lifeboats in emergency situations. This robust and reliable winch is engineered to meet the stringent demands of marine rescue operations, providing exceptional performance and safety.
We offer comprehensive certification options for our Rescue Boat Winch, including CCS (China Classification Society), ABS (American Bureau of Shipping), DNV (Det Norske Veritas), GL (Germanischer Lloyd), NK (Nippon Kaiji Kyokai), KR (Korean Register of Shipping), BV (Bureau Veritas), LR (Lloyd’s Register), and more. These certifications guarantee that our winch adheres to the highest international standards for marine equipment, ensuring peace of mind and compliance with regulatory requirements.
Key Features:
- High Working Load Capacity: Capable of handling loads up to 100 kN, ensuring it can manage various sizes of rescue boats.
- Fast Lifting and Lowering Speeds: With lifting speeds of at least 36 m/min and lowering speeds ranging from 80-125 m/min, this winch ensures rapid response in emergencies.
- Durable Wire Rope: Utilizes high-quality wire ropes with diameters ranging from 12.5 mm to 24 mm, providing strength and reliability.
- Ample Drum Capacity: The drum can accommodate up to 60 meters of wire rope, depending on the model, ensuring sufficient length for deployment.
- Powerful Motor: Equipped with motors ranging from 12.5 kW to 45 kW, providing the necessary power for efficient operation.
- Certified for Marine Use: Meets multiple international certifications, ensuring compliance and safety in marine environments.
Main Technical Specifications:
| Working Load (kN) | Lifting Speed (m/min) | Lowering Speed (m/min) | Wire Dia. (mm) | Drum Capacity (m) | Motor Power (kW) |
|---|---|---|---|---|---|
| 25 | ≥36 | 90-96 | Ф12.5 | 45 | 12.5/12.5 |
| 40 | ≥36 | 80-90 | Ф16 | 40 | 16.8/16.8 |
| 50 | ≥36 | 95-125 | Ф16 | 55 | 22.5/10.6 |
| 63 | ≥36 | 90-96 | Ф20 | 55 | 22.5/22.5 |
| 80 | ≥36 | 90-96 | Ф22 | 60 | 30/30 |
| 100 | ≥36 | 90-96 | Ф24 | 60 | 45/45 |
FAQs:
Q1: What certifications does the Rescue Boat Winch come with?
A1: Our Rescue Boat Winch is available with multiple international certifications, including CCS, ABS, DNV, GL, NK, KR, BV, and LR. These certifications ensure that the winch meets the highest safety and performance standards for marine equipment.
Q2: What is the maximum working load capacity of the Rescue Boat Winch?
A2: The Rescue Boat Winch is available in models with working load capacities ranging from 25 kN to 100 kN, allowing it to handle various sizes of rescue boats.
Q3: How fast can the Rescue Boat Winches lift and lower the rescue boat?
A3: The lifting speed of the Rescue Boat Winch is at least 36 m/min, while the lowering speed ranges from 80-125 m/min, depending on the model. This ensures rapid deployment and retrieval of the rescue boat in emergency situations.
Q4: What type of wire rope does the Rescue Boat Winches use?
A4: The Rescue Boat Winch utilizes high-quality wire ropes with diameters ranging from 12.5 mm to 24 mm, providing strength and reliability for marine rescue operations.
Q5: How much wire rope can the drum of the Rescue Boat Winches accommodate?
A5: The drum capacity of the Rescue Boat Winch ranges from 40 meters to 60 meters, depending on the model, ensuring sufficient length for deployment and retrieval of the rescue boat.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
