MOORING WINCH & SYSTEM

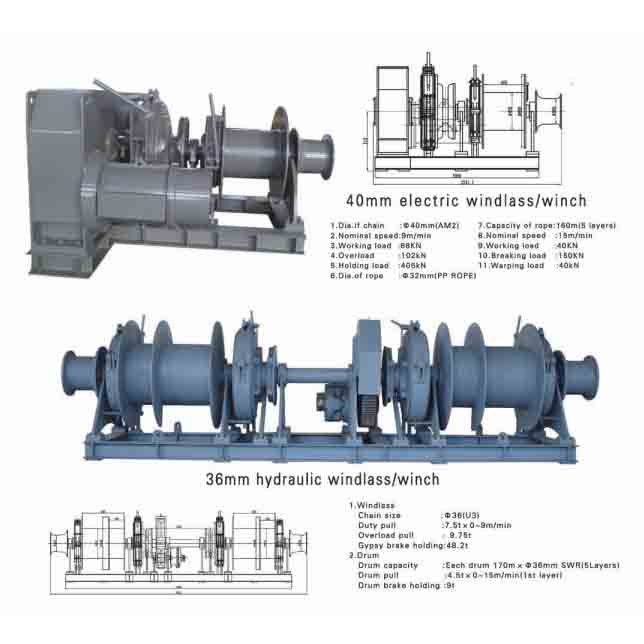

From simple tie up dockside mooring duties to more specialised positioning systems for subsea operations including pipe laying, dredging, accommodation barges and survey vessels. Our Standard range of single or double drum mooring winch can be adapted to bespoke solutions for customer’s individual requirements.
Multiple point mooring systems are available with hydraulic, electric or diesel drives, supported with full control systems and associated pulleys sheaves and couplings.
| Model | Dia. of chain wheel | Working load (kN) | Overload pulling force (kN) | Supporting load (kN) | Nominal speed (m/min) | Nominal speed of drum load (kN) (m/min) | Capacity of rope (steel wire) (m/min) | Warping load (kN) |
|---|---|---|---|---|---|---|---|---|
| AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | |||
| 17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 |
| 19 | 19 | 15.3 | 17.2 | 23.0 | 25.8 | 95 | 135 | 9 |
| 20 | 20 | 17.9 | 20.0 | 26.9 | 30.0 | 110 | 157 | 9 |
| 22 | 22 | 20.6 | 23.0 | 30.9 | 34.5 | 126 | 180 | 9 |
| 24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 |
| 26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 |
| 28 | 28 | 33.3 | 37.2 | 50.0 | 55.8 | 202 | 289 | 9 |
| 30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 |
| 32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 |
| 34 | 34 | 49.1 | 54.9 | 73.7 | 82.4 | 294 | 421 | 9 |
| 36 | 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 |
| 38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 |
| 40 | 40 | 68.0 | 76.0 | 102.0 | 114.0 | 402 | 576 | 9 |
| 42 | 42 | 75.0 | 93.8 | 112.5 | 125.7 | 442 | 632 | 9 |
| 44 | 44 | 82.3 | 92.0 | 123.5 | 138.0 | 483 | 691 | 9 |
| 46 | 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 |
| 48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 816 | 9 |
| 50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 |
| 52 | 52 | 114.9 | 128.4 | 192.6 | 192.6 | 664 | 950 | 9 |
| 54 | 54 | 123.9 | 138.5 | 185.9 | 207.8 | 713 | 1021 | 9 |
| 56 | 56 | 133.3 | 149.0 | 200.0 | 223.5 | 764 | 1093 | 9 |
| 58 | 58 | 143.0 | 159.8 | 214.5 | 239.7 | 816 | 1168 | 9 |
| 60 | 60 | 153.0 | 171.0 | 229.5 | 256.5 | 870 | 1245 | 9 |
| 62 | 62 | 163.4 | 182.6 | 245.1 | 273.9 | 925 | 1324 | 9 |
| 64 | 64 | 174.1 | 194.6 | 261.2 | 291.9 | 982 | 1405 | 9 |
| 66 | 66 | 185.1 | 206.9 | 277.7 | 310.4 | 1040 | 1488 | 9 |
| 68 | 68 | 196.5 | 219.6 | 294.8 | 329.4 | 1098 | 1573 | 9 |
| 70 | 70 | 208.3 | 232.8 | 312.5 | 349.2 | 1160 | 1660 | 9 |
| 73 | 73 | 226.5 | 253.1 | 339.8 | 379.7 | 1254 | 1794 | 9 |
| 76 | 76 | 245.5 | 274.4 | 368.3 | 411.6 | 1350 | 1932 | 9 |
| 78 | 78 | 258.6 | 289.0 | 387.9 | 433.5 | 1416 | 2026 | 9 |
