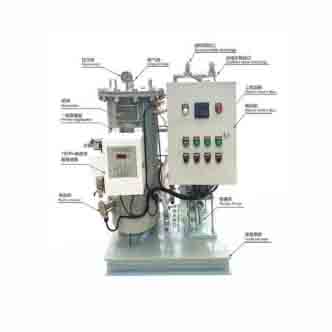

Shipboard bilge water treatment device
The DWS series of shipboard bilge water treatment devices are environmentally friendly production products designed by our company in accordance with the provisions of GB/T4795-1999 “Marine bilge oil water separation equipment” and the requirements of the International Marine Environmental Protection Committee MEPC.107 (49) standard. The treatment capacity of this product can range from 0.05m³/h to 5.00 m³/h, and can be customized according to user needs. This device is not only suitable for the treatment of ship bilge water, but can also be used for oily water treatment in industrial and mining enterprises. Its discharge standards fully meet the relevant requirements of Chinese and international environmental protection departments. CCS certificate can be provided.
Bilge Water Separator
| No. | Item | ows-0.10 | ows-0.25 | ows-0.5 | ows-1.0 | ows-2.0 | ows-3.0 |
|---|---|---|---|---|---|---|---|
| 1 | Model | ows-0.10 | ows-0.25 | ows-0.5 | ows-1.0 | ows-2.0 | ows-3.0 |
| 2 | Rated Processing Capacity | 0.1m³/h | 0.25m³/h | 0.5m³/h | 1.0m³/h | 2.0m³/h | 3.0m³/h |
| 3 | Discharge Index | ≤15Ppm | |||||
| 4 | Electrical Control | AC380V/220V/415V、50Hz or AC440V、60Hz | |||||
| 5 | Working Pressure | 0.16Mpa | |||||
| 6 | Bilge Water Flow | 0.1m³/h | |||||
| 7 | Plunger Pump Flow | 20M | 25M | 25M | 25M | 30M | 30M |
| 8 | Plunger Pump Head | DZ-100 | DZ-250 | DZ-500 | DZ-1000 | DZ-2000 | DZ-3000 |
| 9 | Oil Concentration Meter Model | XOC-01 | XOC-01 | XOC-01 | XOC-01 | XOC-01 | XOC-01 |
| 10 | Inlet And Outlet Diameters Of The Equipment | DN15 | DN25 | DN25 | DN25 | DN32 | DN32 |
| 11 | Pump Motor Power | 180W | 370W | 370W | 550W | 750W | 1100W |
| 12 | Electric Heater Power | 1KW | 1KW | 1KW | 3KW | 3KW | 3KW |
| 13 | Oil Drain Method | Manual or Automatic | Manual or Automatic | Manual or Automatic | Manual or Automatic | Manual or Automatic | Manual or Automatic |
Note: The description may be different with the product, please contact us for quotation.
