YSZ Series 15ppm Bilge Water Separator
Summary
The YSZ series 15ppm bilge water separator is designed and manufactured in accordance with the provisions of IMO MEPC.107(49) resolution “Resolution on Pollution-prevention equipment and Manual and Provisions of IMO MEPC.107(49) resolution technical specifications of bilge water for vessel machine location”. The device is used for treatment of bilge water of different types of Vessels.
The device has characteristics of compact structure, small volume, light weight, strong treatment capacity, reliable performance, convenient maintenance etc. It adopts ways of automatic and manual heating, automatic oil discharging, automatic alarm, automatic recording of operation process etc. for work. Oil can be discharged manually if necessary, especially for the vessels which has higher automation degree.
Theory

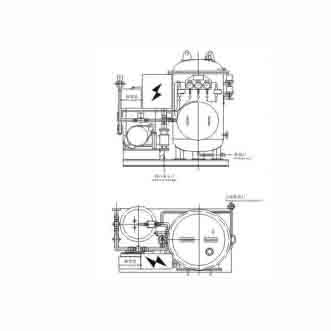

The YSZ series 15ppm bilge water separator is a gravity type and insulation type oil filtering device. It is composed of separator, special pump, electric control chamber, 15ppm bilge water alarm device, inhaled filter assembly and other pipelines, valves and accessories etc.
The separator adopts three-grade oil-filtering mode. The vessel bilge water is infused into first grade oil filtering of separator and make use of specific weight difference of water and oil to separate the floating oil from the water in the bilge water. The condenser in the second grade oil filtering chamber condenses and rougher to enable the tiny oil grain separate and float on the water surface. The bilge water after second grade treatment which reaches discharge standard will be drained directly outside board. If the bilge water after second treatment cannot reach discharge standard then the third ultra-filtering device will be opened to enable the bilge water to be drained reach discharge standard. The dirty oil which was separated accumulates on top of oil filtering chamber. The dirty oil will be discharged into dirty oil tank directly when they accumulate to a certain amount.
Main Technical Parameters / Main technical parameters
| Parameter / Parameter | Model Type | YSZ-0.1 | YSZ-0.25 | YSZ-0.5 | YSZ-1 | YSZ-2 | YSZ-3 | YSZ-4 | YSZ-5 |
|---|---|---|---|---|---|---|---|---|---|
| Treatment Capacity (m³/h) | 0.1 | 0.25 | 0.5 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | |
| Discharge Standard | ≤15ppm | ||||||||
| Working Oil Pressure | ≤0.3MPa | ||||||||
| Type | DZ-100 | DZ-250 | DZ-500 | DZ-1000 | DZ-2000 | DZ-3000 | DZ-4000 | DZ-5000 | |
| Flow Rate (m³/h) | 0.1 | 0.25 | 0.5 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | |
| Oil Discharge Pressure (MPa) | 0.3 | ||||||||
| Piston Pump | |||||||||
| Lift Height (m) | 6 | ||||||||
| Motor Power (kW) | 0.12 | 0.18 | 0.25 | 0.37 | 0.75 | 1.1 | 1.5 | 1.5 | |
| Electric Heating Power (kW) | 1 | 2 | 3 | ||||||
| Power Supply | 3Ph/380V/50Hz; & 3Ph/440V/60Hz; | ||||||||
| Control Mode | Automatic | ||||||||
| Discharge Mode | Auto/Manual |
Note: The description may be different with the product, please contact us for quotation.
