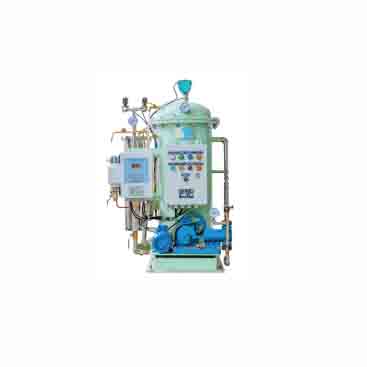

HBN Series 15ppm Bilge Water Separator
The HBN Series 15ppm bilge water separator is a high-tech product in the field of marine environmental protection. According to the IMO Resolution MEPC.107(49) “Revised Guidelines and Specifications for Pollution Prevention Equipment for Machinery Space Bilges of Ships”, it is designed and developed. It effectively separates various types of fuel oils used on ships, including high-density residual oils and emulsified oil mixtures, with the oil content of the effluent being less than 15ppm. Additionally, the newly developed 5ppm bilge water separator, with an effluent oil content of less than 5ppm, is now also in bulk supply.
The HBN Series 15ppm bilge water separator fully complies with:
- Rules for the Statutory Inspection of Ships on Domestic Voyages (2008), Maritime Safety Administration of the People’s Republic of China
- Amended Regulation 11 of Annex I to the International Convention for the Prevention of Pollution from Ships (MARPOL 73/78)
- IMO MEPC.107(49) Revised Guidelines and Specifications for Pollution Prevention Equipment for Machinery Space Bilges of Ships
The product has obtained type approval from the following organizations: China Classification Society (CCS), European Commission (EC), Russian Maritime Register of Shipping (RS), Korean Register of Shipping (KR), Vietnam Register (VR), and China Ship Inspection Bureau (ZC/ZY).
Recommended Capacity of Bilge Water Separator
| Model | Displacement (m³/h) | Applicable Gross Tonnage of ships(GT) | Remarks |
|---|---|---|---|
| HBN-0.1 | 0.1 | 400 | Considering the type of bilge, the volume of bilge water, and the technical route of separation, as long as the oil content in the effluent meets the discharge standard, the displacement can be slightly smaller. |
| HBN-0.25 | 0.25 | 550 | |
| HBN-0.5 | 0.5 | 2500 | |
| HBN-1.0 | 1.0 | 10000 | Consider the route of the vessel, volume of the bilge water holding tanks, separating technology on board, and the capacity of separator can be higher or lower, provided that an equivalent standard for the protection of the marine environment can be ensured. |
| HBN-2.0 | 2.0 | 40000 | |
| HBN-3.0 | 3.0 | 50000 | |
| HBN-5.0 | 5.0 | No tonnage Limit |
Technical Specification
| Model | Displacement (m³/h) | Pressure (Normal (Mpa) /Design(Mpa)) | Accompanying pump (Model / Type / Power (kW)) | Electric heater (Power (kW)) | Bilge water alarm system (Configuration) | Temperature control method (Configuration) | Drainage method (Configuration) |
|---|---|---|---|---|---|---|---|
| HBN-0.1 | 0.1 | 0.03 | 0.3 | DZ-100 | 0.12 | Optional | XOC-01 |
| HBN-0.25 | 0.25 | 0.03 | 0.3 | DZ-250 | 0.25 | Optional | XOC-01 |
| HBN-0.5 | 0.5 | 0.03 | 0.3 | DZ-500 | 0.25 | Optional | XOC-01 |
| HBN-1.0 | 1.0 | 0.07 | 0.3 | DZ-1000 | 0.37 | 2.0 | XOC-01 |
| HBN-2.0 | 2.0 | 0.07 | 0.3 | DZ-2000 | 0.75 | 2.0 | XOC-01 |
| HBN-3.0 | 3.0 | 0.07 | 0.3 | DZ-3000 | 1.1 | 2.0 | XOC-01 |
| HBN-5.0 | 5.0 | 0.07 | 0.3 | DZ-5000 | 1.5 | 3.0 | XOC-01 |
HBN Advantages Of The Products
The HBN Series 15ppm bilge water separator design not only pursues extremely high emission standards, but also gives consideration to meet the needs of ship-owners and shipyards. The Advantage of the HBN product is created basing on this design idea.
- High separation accuracy and processing efficiency, Drain oil content is less than 15ppm;
- Suitable for processing from the ship machinery space bilge all oily contaminants, including the ship may carry various oil and its emulsion form a mixture;
- High degree of automation, easy to operate, set the automatic control of the discharge of oil, automatic temperature control and safety protection measures without the need for repeated washing, the service life>1 year;
- Configure 15ppm bilge alarm device, automatically display the effluent oil content, when discharging water exceed the standard automatic alarm then discharge the water back to the bilge, also it will automatically recorded;
- Alarm device with alarm when recording date, time, and oil content and the bilge water separator running status function, recording device recording at least 18 months can display and print the official examination required report;
- The product has the advantages of small volume, light weight, convenient installation and maintenance;
- Complete accessories and spare parts, high-quality and efficient after-sales service.
HBN Technology comparison with other Typical Technology
| Typical Technology | HBN Technology | Membrane Technology | General-absorption Technology | Coalescence Technology |
|---|---|---|---|---|
| Treatment effect of emulsified oil | Excellent | Good | General | Bad |
| Service life | >1 year | 3-6 months | 6 months left | <1 year |
| System operation | Simple | Particularly complex | Simple | Simple |
| Running costs | Low | High | High | Low |
| Backwash | No backwashing | Frequent backwashing and chemical cleaning on a regular basis | Periodic backwash | No backwashing |
| Volume | Small | Great | Large | Large |
| Weight | Very light | Heavy | Heavier | Heavier |
HPN Series 15ppm Bilge Separator
The HPN Series 15ppm bilge separator, all kinds of fuels used by ships, including the residual oil with extremely high density and emulsified oil mixture, can be separated effectively, and the effluent oil content is no more than < 15ppm.
Note: The product and accompanying accessories are shown in dashed boxes.
| Model | External dimensions and installation dimensions (H x A x B x C x D) | Weight (Kg) |
|---|---|---|
| HBN-0.1 | 1100 x 570 x 610 x 480 x 470 | 120 |
| HBN-0.25 | 1170 x 740 x 720 x 450 x 660 | 155 |
| HBN-0.5 | 1370 x 740 x 720 x 450 x 660 | 185 |
HPN Series 15ppm Bilge Separator
The HPN Series 15ppm bilge separator, all kinds of fuels used by ships, including the residual oil with extremely high density and emulsified oil mixture, can be separated effectively, and the effluent oil content is no more than < 15ppm.
Note: The product and accompanying accessories are shown in dashed boxes.
| Model | External dimensions and installation dimensions (H x A x B x C x D) | Weight (Kg) |
|---|---|---|
| HBN-1.0 | 1480 x 1080 x 850 x 1000 x 450 | 380 |
| HBN-2.0 | 1530 x 1180 x 880 x 1000 x 450 | 450 |
| HBN-3.0 | 1700 x 1130 x 1400 x 1100 x 450 | 820 |
| HBN-5.0 | 1900 x 1130 x 1500 x 1100 x 450 | 950 |
Note: The description might be incorrect, please contact us for confirmation.
