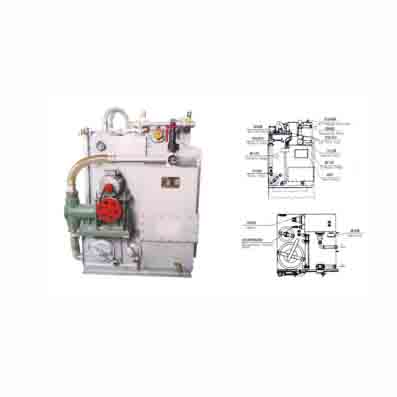

Oil Water Separator for Ship
External Arrangement
Product Specifications and Technical Data
- Model: CYSG(USH) 0.1, CYSG(USH) 0.25, CYSG(USH) 0.5, CYSG(USH) 1.0, CYSG(USH) 1.5, CYSG(USH) 2.0, CYSG(USH) 3.0
- Treatment Capacity (m³/h): 0.1, 0.25, 0.5, 1.0, 1.5, 2.0, 0.05
- Working Oil Pressure: <0.2MPa
- Pump Type: Electric Reciprocating Pump
- Pump and Motor Power: 0.25kW, 0.25kW, 0.37kW, 0.55kW, 0.75kW, 0.75kW
- Discharge Standard: <15ppm
- Suction Height: 5M, 5M, 6M
- Electric Control Panel: DC 110V, AC 3 phase 380V 50Hz 220V, DC24V
- Oil Discharge Control Mode: Auto and Manual (Automatic and Controls)
- Heating Method: Electric Heater
- Weight (kg): 75, 125, 210, 445, 780, 910, 20
Specifications of Oil Water Separators for Ships of Different Tonnages
| Ship Capacity and Main Engine Capacity of Ship Hosting (Tonnage Gt) | Main Engine Horsepower (Hp) | Recommended Oil Water Separators |
|---|---|---|
| 500~5 | ≤200 | CYSC(USH) Series 0.05-0.1 |
| 800~3000 | 200~300 | CYSC(USH) Series 0.1-0.25 |
| 500~800 | 300~500 | CYSC(USH) Series 0.25-0.5 |
| 3000~9000 | 500~1000 | CYSC(USH) Series 0.5-1.0 |
| 9000~15000 | 1000~1300 | CYSC(USH) Series 1.0-1.5 |
| 15000~20000 | 1300~1800 | CYSC(USH) Series 1.5-2.0 |
Product Structure and Dimension
| Item | CYSG(USH) 0.1 | CYSG(USH) 0.25 | CYSG(USH) 0.5 | CYSG(USH) 1.0 | CYSG(USH) 1.5 | CYSG(USH) 2.0 | CYSG(USH) 3.0 |
|---|---|---|---|---|---|---|---|
| L1 | 580 | 570 | 650 | 850 | 1140 | 1140 | 580 |
| L2 | 800 | 800 | 900 | 900 | 1080 | 1080 | 420 |
| L3 | 600 | 1170 | 750 | 820 | 1400 | 1500 | 420 |
| L4 | 1000 | 1000 | 1100 | 1200 | 1600 | 1600 | 420 |
| A | DN65 | DN65 | DN65 | DN65 | DN65 | DN65 | DN65 |
| B | DN50 | DN50 | DN50 | DN50 | DN50 | DN50 | DN50 |
| C | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| D | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| E | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| F | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| G | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| H | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| I | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| J | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| K | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| L | 260 | 250 | 330 | 515 | 670 | 710 | 410 |
Note: The description may be different with the product, please contact us for quotation.
