SHIP WORK LIGHT
Product Images and Dimensional Diagrams

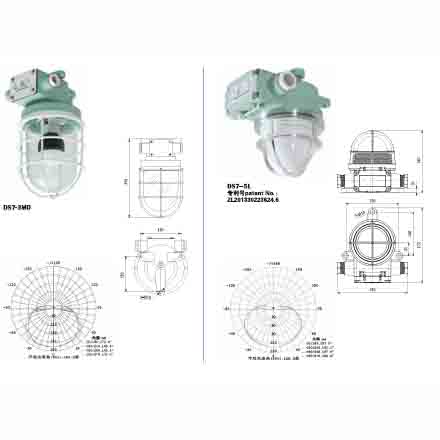

[The image shows two types of work lights, DS7 – 3MD and DS7 – 5L, each with a front – view photo, a side – view photo, and a dimensional diagram. The diagrams provide detailed measurements such as overall height, diameter, and other size – related specifications. There is also a note indicating the patent number for DS7 – 5L: ZL20132022624.8.]
Applicable Scope
This series of lights is suitable for ships with water – dripping, water – splashing, and wet – weather forms, such as engine rooms, dry cargo holds, pipes, and weather decks.
DS7 – 3MD Specifications
| Item | Detail |
|---|---|
| Type | DS7 – 3MD |
| Rated Voltage | AC110 – 240V 50/60Hz |
| Power | 150W |
| Power Factor | ≥0.5 |
| Illuminant | LED Bulb/LED Bay |
| Color | White |
| Luminous Flux | 15000lm |
| Color Rendering Index | Ra≥80 |
| Color Temperature | 5700K (Optional: 3000K, 4000K, 6500K) |
| Protection Class | IP56 |
| Cable Outside Diameter | φ10 – φ14 |
| Installation Method | Wall – mounted Type |
| Ambient Temperature | -25℃ – +55℃ |
| Lamp Body Material | Stainless Steel 304/316 (Optional) |
| Lamp Shade Material | Toughened Glass |
| Weight | 2.5kg |
DS7 – 5L Specifications
| Item | Detail |
|---|---|
| Type | DS7 – 5L |
| Rated Voltage | DC24V |
| Power | 50W |
| Power Factor | / |
| Illuminant | LED |
| Color | White |
| Luminous Flux | 4000lm |
| Color Rendering Index | Ra≥80 |
| Color Temperature | 5700K (Optional: 3000K, 4000K, 6500K) |
| Protection Class | IP67 |
| Cable Outside Diameter | φ8 – φ12 |
| Installation Method | Wall – mounted Type |
| Ambient Temperature | -40℃ – +55℃ |
| Lamp Body Material | Stainless Steel 304 |
| Lamp Shade Material | Toughened Glass |
| Weight | 0.5kg |
Attention please: The description may be different with the product, please contact us for quotation.
