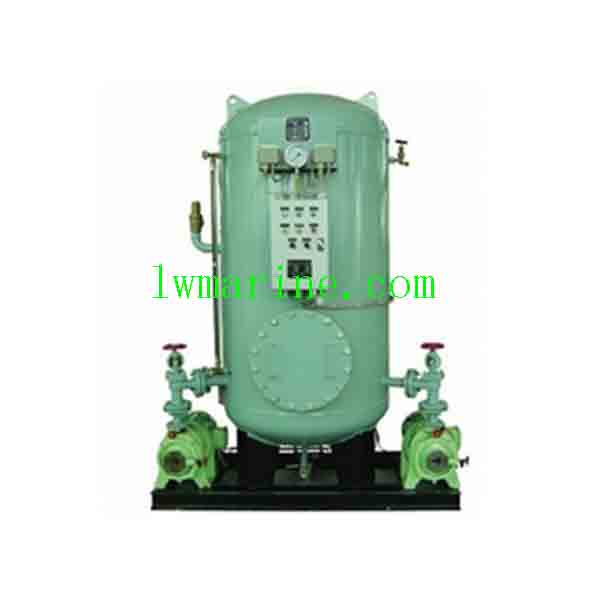

ZYG Series High-Performance Ship Hydrophor Combined Pressure Water Vessel System for Marine Freshwater Supply
1. Application & Versatility The ZYG Series Ship Hydrophor Combined Pressure Water Vessel System is an advanced solution designed to provide a reliable and consistent freshwater supply for living and cleaning purposes on ships and drilling platforms. This robust system is engineered to meet the demanding requirements of marine environments, ensuring optimal performance and durability.
2. Principle & Operation
This innovative device harnesses the pressure generated by the supply pump to compress air within the tank, thereby maintaining the water at an appropriate pressure level for crew use. The system has been rigorously tested and approved by ship-owners, guaranteeing its reliability and efficiency in real-world marine applications.
3. Structural Design & Flexibility
The ZYG Series offers multiple structural configurations to suit various installation needs:
- Wall-hanging Type with Barrel Flange Repair Entrance: Ideal for space-constrained environments, providing easy access for maintenance.
- Wall-hanging Type with Barrel Manhole Repair Entrance: Offers enhanced accessibility for larger maintenance tasks.
- Vertical Type with Barrel Manhole Repair Entrance: Maximizes vertical space utilization, suitable for larger vessels.
Note: Descriptions and sizes may vary depending on the specific model. Please consult with us before placing your order to ensure compatibility.
Main Technical Parameters
| Model | Volume (m³) | Design Pressure (Mpa) | Working Pressure (Mpa) | Water Pump Model | Motor Power (kw) | Capacity (m³/h) | Pressure (Mpa) |
|---|---|---|---|---|---|---|---|
| ZYG-0.2 | 0.2 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-0.3 | 0.3 | (Details upon request) | (Details upon request) | (Customizable) | (Customizable) | (Customizable) | (Customizable) |
| ZYG-0.5 | 0.5 | (Details upon request) | (Details upon request) | (Customizable) | (Customizable) | (Customizable) | (Customizable) |
| ZYG-1.0 | 1.0 | (Details upon request) | (Details upon request) | (Customizable) | (Customizable) | (Customizable) | (Customizable) |
| ZYG-1.5 | 1.5 | (Details upon request) | (Details upon request) | (Customizable) | (Customizable) | (Customizable) | (Customizable) |
| ZYG-2.0 | 2.0 | (Details upon request) | (Details upon request) | (Customizable) | (Customizable) | (Customizable) | (Customizable) |
| ZYG-2.5 | 2.5 | (Details upon request) | (Details upon request) | (Customizable) | (Customizable) | (Customizable) | (Customizable) |
Basic Dimensions
| Model | Overall Size (mm) | Base Size (mm) | Water Inlet DN | Water Outlet DN | Draining Outlet DN |
|---|---|---|---|---|---|
| ZYG-0.2 | 500x1130x1635 | 600×1040 | 40 | 25 | 20 |
| ZYG-0.3 | 600x1170x1690 | 600×1080 | 32 | 20 | (Details upon request) |
| ZYG-0.5 | 700x1236x1920 | 700×1160 | 32 | 20 | (Details upon request) |
| ZYG-1.0 | 900x1585x2153 | 960×1510 | 40 | 20 | (Details upon request) |
| ZYG-1.5 | 1000x1604x2615 | 1000×1600 | 40 | 20 | (Details upon request) |
| ZYG-2.0 | 1200x1812x2473 | 1220×1810 | 40 | 25 | (Details upon request) |
| ZYG-2.5 | 1200x1812x2873 | 1220×1810 | 40 | 25 | (Details upon request) |
FAQs:
Q1: What makes the ZYG Series Ship Hydrophor Combined Pressure Water Vessel System suitable for marine applications?
A1: The ZYG Series is engineered to withstand the harsh conditions of marine environments, featuring durable materials and a robust design that ensures reliable freshwater supply for living and cleaning purposes on ships and drilling platforms.
Q2: How does the system maintain water pressure within the tank?
A2: The system utilizes the pressure generated by the supply pump to compress air within the tank, thereby maintaining the water at an appropriate pressure level for crew use.
Q3: Can the ZYG Series be customized to fit specific ship requirements?
A3: Yes, the ZYG Series offers multiple models with varying volumes and technical parameters, allowing for customization to meet specific ship requirements. Additionally, structural configurations can be tailored to suit different installation needs.
Q4: What maintenance is required for the ZYG Series Ship Hydrophor Combined Pressure Water Vessel System?
A4: Regular maintenance includes checking the pressure levels, inspecting for leaks, and ensuring the repair entrance is accessible and functional. The specific maintenance requirements may vary depending on the model and usage conditions.
Q5: How can I ensure compatibility when ordering a ZYG Series system for my ship?
A5: Please consult with us before placing your order to discuss your specific requirements and ensure compatibility with your ship’s existing infrastructure. We can provide detailed descriptions, sizes, and technical parameters to help you make an informed decision.
Please Note: The description might be incorrect, please contact us for confirmation.
