Ship Pressure Water Tank / Pressure Water Tank Unit
Usage and Features
The ship pressure water tank is suitable for the water supply system of various ships’ seawater or freshwater systems, providing water for crew members’ daily life, sanitation, and firefighting.
Depending on the cabin space, it can be used as a pressure water tank, or it can be equipped with vertical or horizontal water pumps to form a complete unit. It integrates the pressure water tank, valves, and pipelines into one unit, featuring a modular design, compact structure, easy installation and maintenance, and a beautiful appearance. It is an ideal water supply unit.
Specifications Table

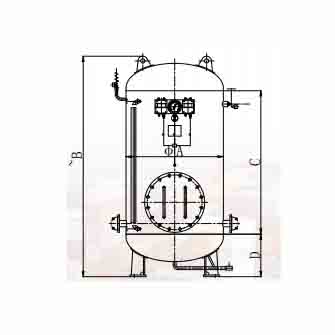

| Model | Volume | External Dimensions (mm) | |||
|---|---|---|---|---|---|
| ΦA | B | C | D | ||
| JMYLG0.5 | 0.5m³ | Φ712 | 1770 | 1050 | 360 |
| JMYLG1.0 | 1.0m³ | Φ916 | 2075 | 350 | 400 |
| JMYLG1.5 | 1.5m³ | Φ1116 | 2050 | 1200 | 475 |
| JMYLG2.0 | 2.0m³ | Φ1220 | 2220 | 1320 | 560 |
| JMYLG3.0 | 3.0m³ | Φ1528 | 2120 | 1150 | 560 |
Note: Other specifications, as well as materials and flange standards, can be customized according to customer needs.
Note: The description may be different with the product, please contact us for quotation.
