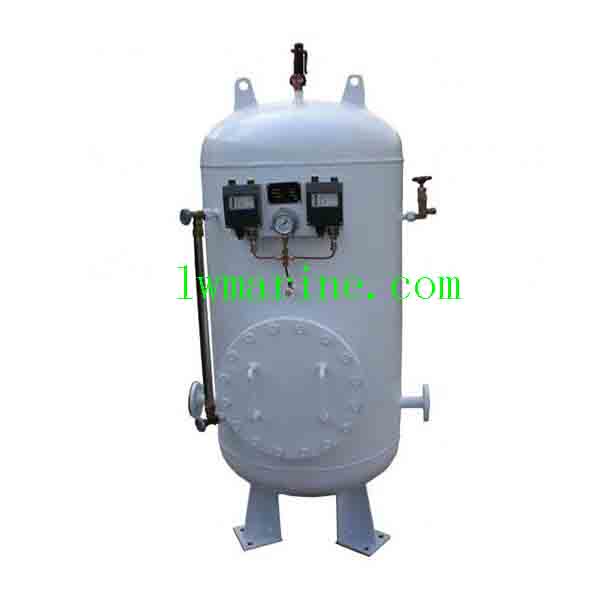

Marine Sea water Hydrophore System: High-Performance Pressurized Water Storage for Vessel Cleaning
Our Marine Sea water Hydrophore System is a robust and reliable solution designed specifically for vessel washing and onboard water supply needs. This advanced system features a double high-quality strong pressure pump setup (with one pump serving as a standby), along with essential components such as a pressure gauge, pressure gauge valve, safety valve, pressure switch, liquid level indicator, charge valve, ball valve, water inlet and outlet, and a safety valve water outlet. These components work in harmony to ensure a consistent and pressurized water supply for various onboard applications.
Key Components and Functions:
- Pressure Gauge: Displays the real-time pressure inside the tank, allowing for easy monitoring and adjustment.
- Pressure Gauge Valve: Controls the start and stop of the water pump. When the tank pressure drops below 0.4 Mpa, the pump activates to refill the tank until the pressure reaches 0.6 Mpa.
- Safety Valve: Automatically opens when the tank pressure exceeds 0.63 Mpa, releasing excess pressure to prevent over-pressurization and ensure safety.
- Liquid Level Indication: Shows the current water level in the tank, helping to manage water usage and refill schedules effectively.
- Charge Valve: Used to inject compressed air into the tank, maintaining optimal pressure levels for efficient operation.
- Ball Valve: Facilitates the emptying of the tank during maintenance or cleaning procedures.
- Water Inlet and Outlet: Connects to the water pump outlet to inject water into the tank, ensuring a continuous supply.
- Water Outlet: Connects to the onboard water header pipe, providing pressurized water for various uses such as washing and sanitation.
- Safety Valve Water Outlet: Discharges pressure water to the bilge when the safety valve activates, preventing potential damage.
- Discharging Outlet: Allows for the complete emptying of the tank, connected to the bilge for safe disposal.
Main Technical Parameters:
- Volume: Ranges from 0.12 m³ to 3.0 m³, catering to different vessel sizes and water storage requirements.
- Working Pressure: Operates efficiently between 0.4 Mpa and 0.6 Mpa, ensuring reliable performance.
- Design Pressure: Designed to withstand pressures from 0.4 Mpa to 0.7 Mpa, providing a safety margin.
- Strength Test Pressure: Tested up to 1.05 Mpa to ensure structural integrity under extreme conditions.
- Air Tightness Test Pressure: Verified at 0.875 Mpa to guarantee leak-free operation.
- Safety Valve Open Pressure: Activates at 0.63 Mpa to protect the system from over-pressurization.
Model Specifications:
| Model | Volume (m³) | Design Pressure (Mpa) | Working Pressure (Mpa) | Water Pump Model (Optional) | Motor Power (kw, Optional) | Capacity (m³/h) | Pressure (Mpa) |
|---|---|---|---|---|---|---|---|
| ZYG-0.12 | 0.12 | 0.4~0.7 | 0.4~0.6 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-0.3 | 0.3 | ||||||
| ZYG-0.5 | 0.5 | ||||||
| ZYG-1.0 | 1.0 | ||||||
| ZYG-1.5 | 1.5 | ||||||
| ZYG-2.0 | 2.0 | ||||||
| ZYG-3.0 | 3.0 |
FAQs:
Q1: What is the primary function of the marine seawater hydrophore system?
A1: The primary function of the marine seawater hydrophore system is to provide a pressurized water supply for vessel washing and various onboard applications, ensuring efficient and reliable water usage.
Q2: How does the pressure gauge valve control the water pump in the hydrophore system?
A2: The pressure gauge valve monitors the tank pressure and automatically controls the start and stop of the water pump. When the pressure drops below 0.4 Mpa, the pump activates to refill the tank until the pressure reaches 0.6 Mpa.
Q3: What safety features are included in the marine seawater hydrophore system?
A3: The system includes a safety valve that opens when the tank pressure exceeds 0.63 Mpa, releasing excess pressure to prevent over-pressurization. Additionally, the system undergoes strength and air tightness tests to ensure structural integrity and leak-free operation.
Q4: Can the marine seawater hydrophore system be customized for different vessel sizes?
A4: Yes, the system is available in various volumes ranging from 0.12 m³ to 3.0 m³, allowing for customization based on the specific water storage requirements of different vessel sizes.
Q5: How do I maintain the marine seawater hydrophore system?
A5: Regular maintenance includes checking the liquid level indicator, ensuring the charge valve is functioning correctly, and periodically emptying the tank using the ball valve for cleaning. It’s also important to inspect the pressure gauge and safety valve for proper operation.
Please Note: The description might be incorrect, please contact us for confirmation.
