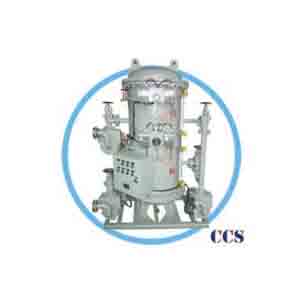

ZYG(S) Series Combination Pressure Water Tank
Application and Principle
This series of assembled seawater and freshwater pressure water tanks are suitable for water supply systems of ship seawater and freshwater pipelines, integrating seawater tanks, freshwater cabinet pumps, valves, and pipelines. This device utilizes the pressure of the water pumped into the cabinet tank to compress the air inside the tank, thereby maintaining the water in the tank at a suitable pressure for on-board use.
Technical Data
| Type | ZYG(S)-0.2 | ZYG(S)-0.4 | ZYG(S)-0.6 | ZYG(S)-0.8 | ZYG(S)-1.0 |
|---|---|---|---|---|---|
| Volume (m³) | 0.1/0.1 | 0.2/0.2 | 0.3/0.3 | 0.4/0.4 | 0.5/0.5 |
| Working Pressure (MPa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Design Pressure (MPa) | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 |
| Test Pressure (MPa) | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 |
| Safety Valve Opening Pressure (MPa) | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
| Working Temperature (℃) | 0 – 45 | 0 – 45 | 0 – 45 | 0 – 45 | 0 – 45 |
| Design Temperature (℃) | 50 | 50 | 50 | 50 | 50 |
| Model of Water Pump | 1.5CXW-1.5/1.5A | 1.5CXW-2/2A | |||
| Flow Rate (m³/h) | 3 | 6.5 | |||
| Pump Head (m) | 40 | 40 | |||
| Power (kW) | 2.2 | 3 |
Attention please: The description might be incorrect, please contact us for confirmation.
