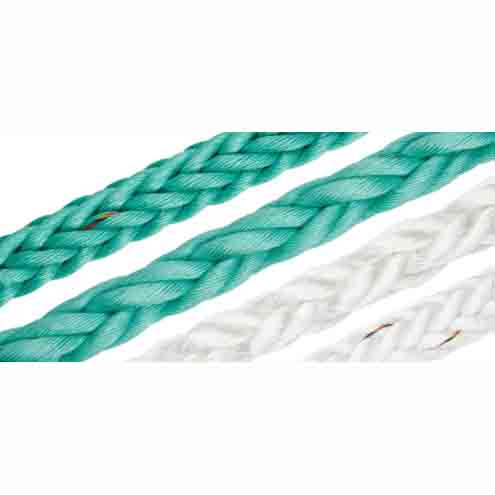

Polypropylene Monofilament Rope
-
Material: Polypropylene Monofilament
-
Density: 0.91g/cm³, Floating
-
Melting Point: 140℃
-
Elongation at Break: 12-14%
-
Abrasion Resistance: Normal
-
UV Resistance: Weak
-
Chemical Resistance: Good
Application: Port towing, fishing, offshore mooring, marine aquaculture.
Features: Widely used for marine towing and mooring, its tensile strength and elongation remain stable in both dry and wet conditions. Light weight, resistant to chemical corrosion, good water resistance, but requires protection from direct sunlight.
Polypropylene Multifilament Rope
-
Material: Polypropylene Multifilament
-
Density: 0.91g/cm³, Floating
-
Melting Point: 165℃
-
Elongation at Break: 15-21%
-
Abrasion Resistance: Normal
-
UV Resistance: Weak
-
Chemical Resistance: Good
Application: Port towing, fishing, offshore mooring, marine aquaculture.
Features: Good water resistance, soft hand feel, strong water absorption, known as “water nylon”. Not easily rotted, low cost, and easy to operate.
General Description
Polypropylene Monofilament Rope is a rope widely used in mooring lines. It has the same strength under wet and dry conditions. It is easy to operate, has good chemical corrosion resistance, drains well, and needs to be kept out of direct sunlight.
Polypropylene Monofilament Rope is a rope that is easy to handle, has low friction, and absorbs water. It is also known as “Water Nylon.”
8-Strand and 12-Strand Technical Parameters (ISO MEG4)
| Size (mm) | Circumference (inch) | Weight (kg/m) | Weight (kg/220m) | ISO MBF (kN) | ISO MBF (Ton) | MEG4 LDBF (kN) | MEG4 LDBF (Ton) |
|---|---|---|---|---|---|---|---|
| 24 | 3 | 260 | 57.2 | 93 | 9.5 | 84 | 8.6 |
| 28 | 3-1/2 | 355 | 78.1 | 124 | 12.6 | 111 | 11.4 |
| 32 | 4 | 460 | 101.2 | 163 | 16.6 | 147 | 15.0 |
| 36 | 4-1/2 | 586 | 128.9 | 198 | 20.2 | 179 | 18.2 |
| 40 | 5 | 718 | 158.0 | 245 | 25.0 | 221 | 22.5 |
| 44 | 5-1/2 | 881 | 193.8 | 292 | 29.8 | 263 | 26.8 |
| 45 | 5-5/8 | 924 | 203.3 | 307 | 31.3 | 276 | 28.2 |
| 48 | 6 | 1040 | 228.8 | 350 | 35.7 | 315 | 32.1 |
| 50 | 6-1/4 | 1130 | 248.6 | 371 | 37.9 | 334 | 34.1 |
| 52 | 6-1/2 | 1220 | 268.4 | 414 | 42.3 | 373 | 38.0 |
| 55 | 6-7/8 | 1380 | 303.6 | 446 | 45.5 | 401 | 40.9 |
| 56 | 7 | 1420 | 312.4 | 467 | 47.6 | 420 | 42.9 |
| 60 | 7-1/2 | 1630 | 358.6 | 525 | 53.6 | 473 | 48.2 |
| 64 | 8 | 1850 | 407.0 | 583 | 59.5 | 525 | 53.6 |
| 65 | 8-1/8 | 1924 | 423.3 | 602 | 61.4 | 542 | 55.3 |
| 68 | 8-1/2 | 2095 | 460.9 | 659 | 67.3 | 593 | 60.5 |
| 70 | 8-3/4 | 2260 | 497.2 | 698 | 71.2 | 628 | 64.1 |
| 72 | 9 | 2340 | 514.8 | 735 | 75.0 | 662 | 67.5 |
| 75 | 9-3/8 | 2585 | 568.7 | 816 | 83.2 | 734 | 74.9 |
| 80 | 10 | 2910 | 640.2 | 933 | 95.2 | 840 | 85.7 |
| 85 | 10-5/8 | 3285 | 722.7 | 1043 | 106.4 | 939 | 95.8 |
| 88 | 11 | 3510 | 772.2 | 1108 | 113.1 | 998 | 101.8 |
| 90 | 11-1/4 | 3668 | 807.0 | 1182 | 120.6 | 1064 | 108.5 |
| 95 | 11-3/4 | 4099 | 901.8 | 1306 | 133.2 | 1175 | 119.9 |
| 96 | 12 | 4160 | 915.2 | 1307 | 133.3 | 1176 | 120.0 |
| 100 | 12-1/2 | 4530 | 996.6 | 1429 | 145.8 | 1286 | 131.3 |
| 104 | 13 | 4860 | 1069.2 | 1540 | 157.1 | 1386 | 141.4 |
| 112 | 14 | 5680 | 1249.6 | 1750 | 178.6 | 1575 | 160.7 |
| 120 | 15 | 6510 | 1432.2 | 1983 | 202.4 | 1785 | 182.1 |
Note:
-
MBL = Minimum Breaking Force per ISO2307.
-
LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.
-
Other sizes are available upon request.
Note: The description may be different with the product, please contact us for quotation.
