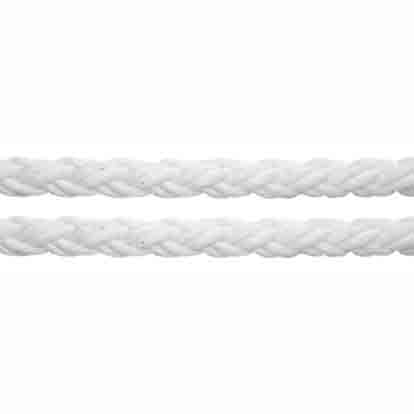

POLYESTER EIGHT STRAND ROPE
Product Overview
- Material: Polyester
- Density: 1.38g/cm³ (Sinking)
- Melting Point: 254 – 260°C
- Elongation at Break: 12 – 18%
- Abrasion Resistance: Good
- UV Resistance: Good
- Chemical Resistance: Good
Polyester ropes have excellent aging resistance, good chemical and abrasion resistance. They offer the same strength and elongation in both dry and wet conditions.
Application: Marine mooring, pelagic fishery, sea farming.
Parameter Table
| Diameter (mm) | Size (Circ.inch) | Weight (g/m) | Weight (kg/220m) | Breaking Strength (kN) | Breaking Strength (ton) |
|---|---|---|---|---|---|
| 24 | 3 | 437 | 96.1 | 121 | 12.4 |
| 28 | 3 – 1/2 | 594 | 130.7 | 166 | 16.9 |
| 32 | 4 | 778 | 171.2 | 217 | 22.1 |
| 36 | 4 – 1/2 | 982 | 216.0 | 273 | 27.9 |
| 40 | 5 | 1210 | 266.2 | 337 | 34.4 |
| 44 | 5 – 1/2 | 1470 | 323.4 | 409 | 41.7 |
| 45 | 5 – 5/8 | 1538 | 338.4 | 428 | 43.7 |
| 48 | 6 | 1750 | 385.0 | 487 | 49.7 |
| 50 | 6 – 1/4 | 1895 | 416.9 | 527 | 53.7 |
| 52 | 6 – 1/2 | 2050 | 451.0 | 570 | 58.2 |
| 55 | 6 – 7/8 | 2300 | 506.0 | 639 | 65.2 |
| 56 | 7 | 2380 | 523.6 | 661 | 67.5 |
| 60 | 7 – 1/2 | 2730 | 600.6 | 759 | 77.4 |
| 64 | 8 | 3110 | 684.2 | 864 | 88.2 |
| 65 | 8 – 1/8 | 3210 | 706.2 | 892 | 91.0 |
| 68 | 8 – 1/2 | 3510 | 772.2 | 976 | 99.5 |
| 70 | 8 – 3/4 | 3715 | 817.3 | 1032 | 105.3 |
| 72 | 9 | 3930 | 864.6 | 1092 | 111.5 |
| 75 | 9 – 3/8 | 4263 | 937.9 | 1184 | 120.8 |
| 80 | 10 | 4850 | 1067.0 | 1348 | 137.5 |
| 85 | 10 – 5/8 | 5480 | 1205.6 | 1522 | 155.3 |
| 88 | 11 | 5870 | 1291.4 | 1631 | 166.4 |
| 90 | 11 – 1/4 | 6140 | 1350.8 | 1706 | 174.0 |
| 95 | 11 – 7/8 | 6850 | 1507.0 | 1903 | 194.2 |
| 96 | 12 | 6990 | 1537.8 | 1942 | 198.2 |
| 100 | 12 – 1/2 | 7580 | 1667.6 | 2108 | 214.9 |
| 104 | 13 | 8200 | 1804.0 | 2317 | 236.3 |
| 112 | 14 | 9500 | 2090.0 | 2533 | 258.5 |
| 120 | 15 | 10900 | 2398.0 | 2907 | 296.6 |
Other sizes are available upon request.
