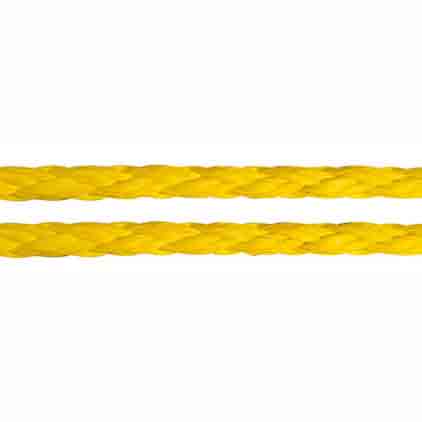

ULTRA – HIGH MOLECULAR WEIGHT POLYETHYLENE EIGHT – STRAND ROPE
Product Information
- Material: UHMWPE
- Density: 0.97g/cm³ (Floating)
- Melting Point: 145°C
- Elongation at Break: 3 – 4%
- Abrasion Resistance: Excellent
- UV Resistance: Excellent
- Chemical Resistance: Excellent
This product is made of ultra – high molecular weight polyethylene fibers.
Product Features
- High Strength: It has the same strength as steel wire under the same diameter and is lightweight.
- Low Elongation: The breaking elongation is close to that of steel wire.
- Light Weight: The weight of the rope is only 12% of that of steel wire, 20 – 25% of that of nylon rope or polyester rope, and 18 – 20% of that of polypropylene rope.
- Small Diameter: Under the same breaking strength, its diameter is 55 – 60% of that of nylon or polyester rope and 45% of that of polypropylene rope.
Application: Not specified in the original text.
Parameter Table
| Diameter (mm) | Size (Circ.inch) | Weight (g/m) | Weight (kg/220m) | Breaking Strength (kN) | Breaking Strength (ton) |
|---|---|---|---|---|---|
| 6 | 3/4 | 21 | 4.6 | 39 | 4.0 |
| 8 | 1 | 40 | 8.8 | 71 | 7.3 |
| 10 | 1 – 1/4 | 51 | 11.2 | 106 | 10.8 |
| 12 | 1 – 1/2 | 83 | 18.3 | 150 | 15.3 |
| 14 | 1 – 3/4 | 117 | 25.7 | 211 | 21.5 |
| 16 | 2 | 151 | 33.2 | 267 | 27.2 |
| 18 | 2 – 1/4 | 184 | 40.5 | 322 | 32.8 |
| 20 | 2 – 1/2 | 227 | 49.9 | 384 | 39.2 |
| 22 | 2 – 3/4 | 274 | 60.3 | 453 | 46.2 |
| 24 | 3 | 324 | 71.3 | 533 | 54.4 |
| 28 | 3 – 1/2 | 444 | 97.7 | 704 | 71.8 |
| 32 | 4 | 589 | 129.6 | 918 | 93.7 |
| 36 | 4 – 1/2 | 720 | 158.4 | 1104 | 112.7 |
| 40 | 5 | 880 | 193.6 | 1329 | 135.6 |
| 44 | 5 – 1/2 | 1078 | 237.2 | 1589 | 162.1 |
| 48 | 6 | 1264 | 278.1 | 1807 | 184.4 |
| 52 | 6 – 1/2 | 1512 | 332.6 | 2136 | 217.9 |
| 56 | 7 | 1760 | 387.2 | 2464 | 251.5 |
| 60 | 7 – 1/2 | 2020 | 444.4 | 2778 | 283.4 |
| 64 | 8 | 2260 | 497.2 | 3092 | 315.5 |
| 68 | 8 – 1/2 | 2585 | 568.7 | 3496 | 356.7 |
| 72 | 9 | 2910 | 640.2 | 3898 | 397.7 |
| 76 | 9 – 1/2 | 3220 | 708.4 | 4263 | 435.0 |
| 80 | 10 | 3530 | 776.6 | 4628 | 472.2 |
| 84 | 10 – 1/2 | 3885 | 854.7 | 5047 | 515.0 |
| 88 | 11 | 4240 | 932.8 | 5464 | 557.6 |
| 92 | 11 – 1/2 | 4615 | 1015.3 | 5893 | 601.3 |
| 96 | 12 | 4990 | 1097.8 | 6322 | 645.1 |
| 100 | 12 – 1/2 | 5515 | 1213.3 | 6997 | 713.9 |
| 104 | 13 | 6040 | 1328.8 | 7522 | 767.5 |
| 120 | 15 | 7980 | 1755.6 | 9856 | 1005.7 |
Other sizes are available upon request.
Attention please: The description may be different with the product, please contact us for quotation.
