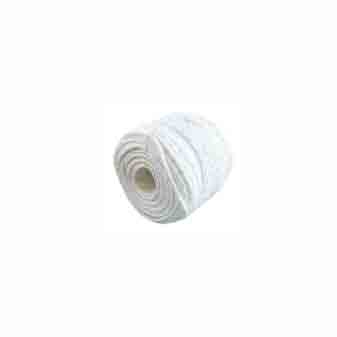

POLYPROPYLENE MONOFILAMENT THREE – STRAND ROPE
Product Overview
- Material: Polypropylene Monofilament
- Density: 0.91g/cm³ (Floating)
- Melting Point: 140°C
- Elongation at Break: 12 – 14%
- Abrasion Resistance: Normal
- UV Resistance: Weak
- Chemical Resistance: Good
This rope is widely used as mooring line, it has same strength either under wet condition or dry condition. It is easy to operate, chemical – corrosion resistant, good drainage, needs to be kept in the dark.
Application: Marine mooring, sea farming, pelagic fishing.
Parameter Table
| Diameter (mm) | Size (Circ.Inch) | Weight (g/m) | Weight (kg/220m) | Breaking Strength (kN) | Breaking Strength (ton) |
|---|---|---|---|---|---|
| 4 | 1/2 | 6 | 1.32 | 2.1 | 0.21 |
| 6 | 3/4 | 17 | 3.74 | 5.9 | 0.60 |
| 8 | 1 | 30 | 6.6 | 10.4 | 1.06 |
| 10 | 1 – 1/4 | 45 | 9.9 | 15.3 | 1.56 |
| 12 | 1 – 1/2 | 65 | 14.3 | 21.7 | 2.21 |
| 14 | 1 – 3/4 | 90 | 19.8 | 29.9 | 3.05 |
| 16 | 2 | 115 | 25.3 | 37.0 | 3.78 |
| 18 | 2 – 1/4 | 148 | 32.56 | 47.2 | 4.82 |
| 20 | 2 – 1/2 | 180 | 39.6 | 56.9 | 5.81 |
| 22 | 2 – 3/4 | 220 | 48.4 | 68.2 | 6.96 |
| 24 | 3 | 260 | 57.2 | 79.7 | 8.13 |
| 26 | 3 – 1/4 | 305 | 67.1 | 92.2 | 9.41 |
| 28 | 3 – 1/2 | 355 | 78.1 | 105.0 | 10.71 |
| 30 | 3 – 3/4 | 405 | 89.1 | 120.0 | 12.24 |
| 32 | 4 | 460 | 101.2 | 132.0 | 13.47 |
| 36 | 4 – 1/2 | 585 | 128.7 | 166.0 | 16.94 |
| 40 | 5 | 720 | 158.4 | 201.0 | 20.51 |
| 44 | 5 – 1/2 | 880 | 193.6 | 242.0 | 24.69 |
| 48 | 6 | 1040 | 228.8 | 280.0 | 28.57 |
| 52 | 6 – 1/2 | 1220 | 268.4 | 325.0 | 33.16 |
| 56 | 7 | 1420 | 312.4 | 371.0 | 37.86 |
Other sizes are available upon request.
Attention please: The description may be different with the product, please contact us for quotation.
