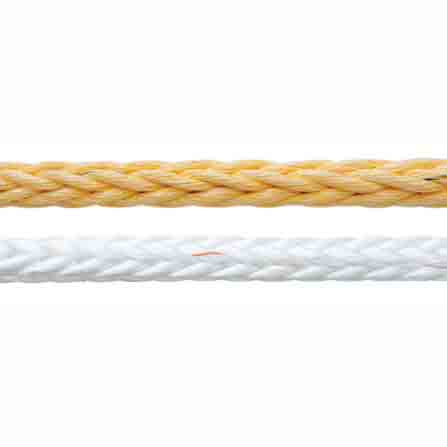

POLYESTER POLYPROPYLENE MIXED TWELVE STRAND ROPE
Product Overview
- Material: Polyester/Polypropylene
- Melting Point: 165°C/260°C
- Elongation at Break: 12 – 15%
- Abrasion Resistance: Excellent
- UV Resistance: Good
- Chemical Resistance: Good
This rope offers very good abrasion resistance, sea – water corrosion resistance, high strength, antistatic properties, and a long service life.
Application: Port towing, oil tankers, asphalt ships, chemical tankers, large – scale bulk carriers, offshore fishing, and other fields.
Parameter Table
| Diameter (mm) | Size (Circ.inch) | Weight (g/m) | Weight (kg/220m) | Breaking Strength (kN) | Breaking Strength (ton) |
|---|---|---|---|---|---|
| 24 | 3 | 334 | 73.5 | 123 | 12.5 |
| 28 | 3 – 1/2 | 455 | 100.1 | 163 | 16.6 |
| 32 | 4 | 594 | 130.7 | 209 | 21.3 |
| 36 | 4 – 1/2 | 742 | 163.2 | 273 | 27.8 |
| 40 | 5 | 915 | 201.3 | 330 | 33.6 |
| 44 | 5 – 1/2 | 1090 | 239.8 | 392 | 40.0 |
| 45 | 5 – 5/8 | 1148 | 252.6 | 408 | 41.6 |
| 48 | 6 | 1320 | 290.4 | 453 | 46.2 |
| 50 | 6 – 1/4 | 1410 | 310.2 | 490 | 49.9 |
| 52 | 6 – 1/2 | 1500 | 330.0 | 526 | 53.7 |
| 55 | 6 – 7/8 | 1718 | 378.0 | 588 | 60.0 |
| 56 | 7 | 1790 | 393.8 | 608 | 62.1 |
| 60 | 7 – 1/2 | 2005 | 441.1 | 692 | 70.6 |
| 64 | 8 | 2260 | 497.2 | 775 | 79.1 |
| 65 | 8 – 1/8 | 2330 | 512.6 | 798 | 81.5 |
| 68 | 8 – 1/2 | 2540 | 558.8 | 868 | 88.6 |
| 70 | 8 – 3/4 | 2690 | 591.8 | 920 | 93.8 |
| 72 | 9 | 2840 | 624.8 | 971 | 99.1 |
| 75 | 9 – 3/8 | 3080 | 677.6 | 1048 | 107.0 |
| 80 | 10 | 3490 | 767.8 | 1177 | 120.1 |
| 85 | 10 – 5/8 | 3933 | 865.3 | 1330 | 135.8 |
| 88 | 11 | 4200 | 924.0 | 1422 | 145.1 |
| 90 | 11 – 1/4 | 4400 | 968.0 | 1489 | 151.9 |
| 95 | 11 – 3/4 | 4900 | 1078.0 | 1654 | 168.8 |
| 98 | 12 | 5000 | 1100.0 | 1687 | 172.2 |
| 100 | 12 – 1/2 | 5430 | 1194.6 | 1834 | 187.2 |
| 104 | 13 | 5860 | 1289.2 | 1982 | 202.2 |
| 112 | 14 | 6740 | 1482.8 | 2286 | 233.2 |
| 120 | 15 | 7740 | 1702.8 | 2609 | 266.3 |
Other sizes are available upon request.
Attention please: The description may be different with the product, please contact us for quotation.
