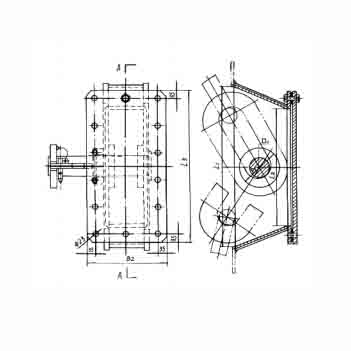

PLUG TYPE ANCHOR RELEASED
CB*3143—83 265.YHS—012
PRODUCT SPECIFICATION TABLE
表格
| NOMINAL SIZE | ANCHOR CHAIN DIAMETER | MAIN BODY DIMENSIONS | WEIGHT kg | ||||
|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | B2 | D3 | |||
| 52 | 50~52 | 384 | 270 | 460 | 242 | 112 | 40.5 |
| 56 | 54~56 | 420 | 296 | 486 | 252 | 120 | 48.0 |
| 60 | 58~60 | 448 | 314 | 504 | 262 | 128 | 53.9 |
| 64 | 62~64 | 478 | 334 | 524 | 270 | 136 | 60.0 |
| 68 | 66~68 | 504 | 352 | 542 | 278 | 144 | 70.8 |
| 73 | 70~73 | 540 | 380 | 570 | 288 | 154 | 81.4 |
| 78 | 76~78 | 576 | 404 | 594 | 300 | 164 | 92.8 |
| 84 | 81~84 | 624 | 438 | 628 | 310 | 174 | 106.0 |
| 90 | 87~90 | 670 | 470 | 660 | 326 | 184 | 128.0 |
| 95 | 92~95 | 708 | 496 | 686 | 342 | 194 | 146.0 |
| 102 | 98~102 | 762 | 534 | 724 | 358 | 206 | 188.0 |
| 111 | 105~111 | 828 | 580 | 770 | 376 | 224 | 231.0 |
| 120 | 114~120 | 892 | 620 | 810 | 402 | 242 | 274.0 |
MARKING EXAMPLE
Plug type anchor released with anchor chain diameter 50~52mm: PLUG TYPE ANCHOR RELEASED 52 CB*3143-83
AS INDICATION: ANCHOR CHAIN DIA 50-52mm FOR DOG TYPE CABLE CLENCHES DOG TYPE CABLE CLENCHES 52 CB*3143-83
Note: The description may be different with the product, please contact us for quotation.
