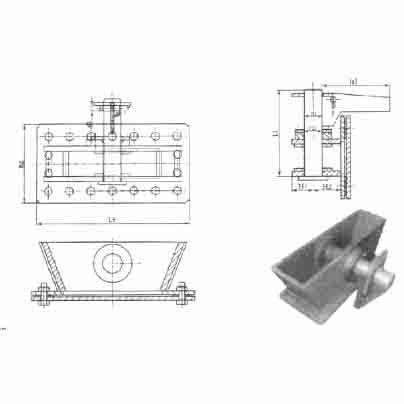

Dog Type Cienches Anchor Releaser

Dog Type Cienches Anchor Releaser
CB/T3143-83 JIS F 2025-92

Type	Dia. of anchor chain	L1	L3	B2	H1	H2	D1	D2	h1	d1	Weight kg
52	50~52	384	460	238	63	82	54	57	190	16	40.5
56	54~56	420	486	246	69	88	58	61	194	16	48
60	58~60	448	504	254	74	94	62	65	198	16	53.9
64	62~64	478	524	264	80	100	66	69	202	16	60
68	66~68	504	542	272	84	107	70	73	207	16	70.8
73	70~73	540	570	282	87	114	75	78	212	19	81.4
78	76~78	576	594	292	95	122	80	83	217	19	92.8
84	81~84	624	628	302	102	131	85	88	223	19	106
90	87~90	670	660	316	110	140	90	93	230	19	128
95	92~95	708	686	330	118	148	95	98	235	22	188
102	98~102	762	724	346	128	158	100	103	242	22	188
110	105~111	828	770	364	139	171	110	110	251	22	231
120	114~120	892	810	386	150	184	120	123	260	22	274

Type	Dia. of anchor chain	L1	L3	B2	H1	H2	D1	D2	h1	d1	Weight kg
52	50~52	384	460	242	63	82	54	57	190	8	40.5
56	54~56	420	486	252	69	88	58	61	194	8	48
60	58~60	448	504	262	74	94	62	65	198	8	53.9
64	62~64	478	524	270	80	100	66	69	202	8	60
68	66~68	504	542	278	84	107	70	73	207	8	70.8
73	70~73	540	570	288	87	114	75	78	212	8	81.4
78	76~78	576	594	300	95	122	80	83	217	8	92.8
84	81~84	624	628	310	102	131	85	88	223	10	106
90	87~90	670	660	325	110	143	90	93	230	10	128
95	92~95	708	686	342	118	154	95	98	235	10	188
102	98~102	762	724	358	128	164	100	103	242	10	188
110	105~111	828	770	378	139	179	110	110	251	10	231
120	114~120	892	810	402	150	200	120	123	260	10	274

Note: The description may be different with the product, please contact us for quotation.
