Dog Type Cable Clenches Anchor Releaser

Dog Type Cable Clenches Anchor Releaser
CB/T3143-83 CB/T3143-99

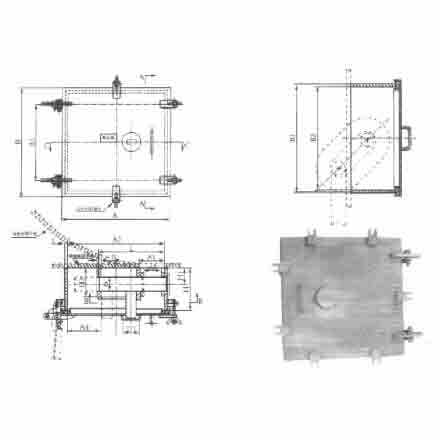

Nominal size	Dia. of anchor chain	A	A1	A2	A3	A4	B	B1	B2	B3	H	H1	H2	D	D1	L	t	t1	Weight kg
52	50~52	466	102	400	68	146	398	346	332	250	175	63	110	54	80	266	14	20	85
56	54~56	501	112	435	74	146	486	434	420	300	180	70	125	58	90	301	14	25	114
60	58~60	541	122	475	80	163	516	464	450	300	185	75	135	62	95	326	14	25	127
64	62~64	546	137	480	84	173	546	498	480	400	220	82	140	66	95	330	14	25	143
68	66~68	568	144	500	88	176	572	516	504	400	230	86	150	70	95	339	16	25	177
73	70~73	604	148	536	94	187	608	558	540	400	246	90	168	75	95	364	16	25	221
78	76~78	638	162	570	102	197	644	596	570	450	248	94	168	80	95	388	16	25	225
84	81~84	698	168	630	108	210	688	636	620	450	250	102	185	85	100	434	16	28	236
90	87~90	730	178	668	116	225	740	686	670	500	280	110	200	90	100	462	18	28	302
95	92~95	770	188	700	124	257	780	730	710	500	288	110	200	95	100	467	18	28	335
102	98~102	824	188	750	132	276	784	730	710	500	315	130	210	100	100	498	22	28	395
110	105~111	886	222	810	142	286	786	730	710	500	370	150	260	110	110	531	24	30	604
120	114~120	906	248	830	156	286	786	730	710	500	380	170	270	112	110	566	24	36	620

Note: The description may be different with the product, please contact us for quotation.
