SCREW TYPE ANCHOR RELEASED
CB*289—81 265.YHS—013

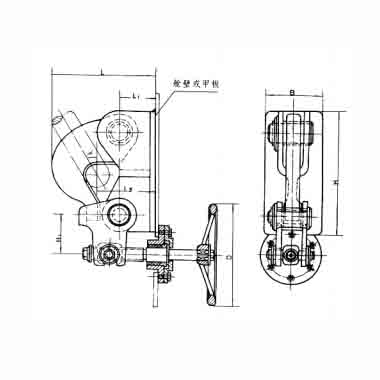

PRODUCT SPECIFICATION TABLE
| ANCHOR CHAIN DIAMETER | B | D | L | L1 | L3 | H | H2 | WEIGHT kg |
|---|---|---|---|---|---|---|---|---|
| 25~34 | 120 | 200 | 228 | 90 | 140 | 260 | 80 | 20 |
| 37~43 | 140 | 250 | 243 | 90 | 145 | 300 | 96 | 36 |
| 46~53 | 180 | 320 | 327 | 125 | 197 | 380 | 120 | 78 |
| 57~67 | 220 | 400 | 390 | 140 | 225 | 480 | 140 | 104 |
| 72~82 | 235 | 400 | 425 | 150 | 250 | 510 | 148 | 149 |
| 87~102 | 250 | 400 | 457 | 160 | 272 | 560 | 150 | 183 |
| 107~122 | 270 | 400 | 485 | 175 | 285 | 630 | 170 | 210 |
MARKING EXAMPLE
Screw type anchor released with anchor chain diameter 46~53mm: SCREW TYPE ANCHOR RELEASED 46-53 CB*289-81
AS INDICATION: ANCHOR CHAIN DIA 46-53mm FOR SCREW-TYPE ANCHOR RELEASED SCREW-TYPE ANCHOR RELEASED 46-53 CB*289-81
Note: The description may be different with the product, please contact us for quotation.
