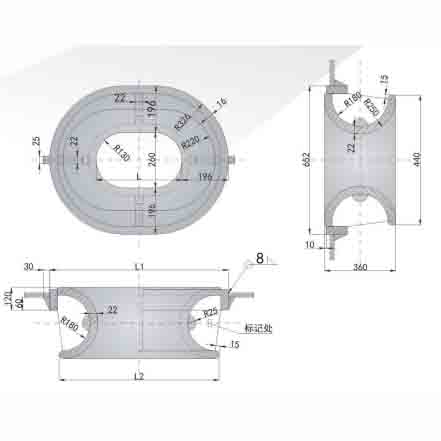

PANAMA CHOCKS

GB11586-89

公称尺寸L	L1	L2	L3	L4	L5	D	H1	H2	H3	R1	R2	R3	R4	R5	K	T	重量KG
310	199	105	310	708	652	38	639	541	199	329	231	140	142	195	15	32	253
360	200	130	360	760	704	40	640	542	200	330	232	138	140	192	15	34	289
400	202	150	400	804	750	44	642	545	202	332	235	134	136	185	20	36	323
450	203	175	450	856	802	46	643	547	203	333	237	132	134	182	20	38	351
500	204	200	500	908	854	48	644	549	204	334	239	130	132	180	20	40	395

Marking example:
Nominal size L is 310, AC type Panama chock,
Panama chock AC 310 GB 11586-89

公称尺寸L	L1	L2	L3	L4	重量KG
310	85	155	670	620	190
360	110	180	720	670	207

Marking example:
Nominal size L is 310, AP type Panama chock,
Panama chock AP 310 GB 11586-89

公称尺寸L	L1	L2	L3	D	H1	H2	H3	R1	R2	R3	R4	R5	K	T	重量KG
310	212	734	652	38	212	684	462	342	231	148	140	195	15	32	276
360	214	788	704	40	214	688	464	344	232	146	138	192	15	34	305
400	216	832	750	44	216	692	470	346	235	144	134	185	20	36	344
450	218	886	802	46	218	696	474	348	237	142	132	182	20	38	385
500	220	940	854	48	220	700	478	350	239	140	130	180	20	40	422

Marking example:
Nominal size L is 310, BC type Panama chock,
Panama chock BC 310 GB 11586-89

公称尺寸L	L1	L2	重量KG
310	702	620	184
360	752	670	193

Marking example:
Nominal size L is 360, BP type Panama chock,
Panama chock BP 360 GB 11586-89

Note: The description may be different with the product, please contact us for quotation.
