Marine Deck Mounted Chocks
Marine Mooring chocks, essential marine deck fittings, are designed to guide and secure mooring ropes effectively. They come in various forms, including closed chocks, open chocks, no-roller chocks, and roller chocks, catering to diverse mooring requirements. Based on their welded positions, mooring chocks can be categorized into deck-mounted chocks and bulwark-mounted chocks. Deck-mounted chocks, such as JIS F-2005, JIS F-2017 type AC, DIN81915 type C, EU type, and CB 34-76 mooring chocks, are welded directly to the deck. On the other hand, bulwark-mounted chocks, including JIS F-2007 type A, JIS F-2007 type B, JIS F-2017 type BC, JIS F-2030 type A, and DIN81915 type A, are attached to the bulwark for enhanced stability.
We offer a comprehensive range of nominal size chocks and can also supply specific types of chocks tailored to your unique requirements. If you’re in search of high-quality mooring chocks, please don’t hesitate to reach out to us.

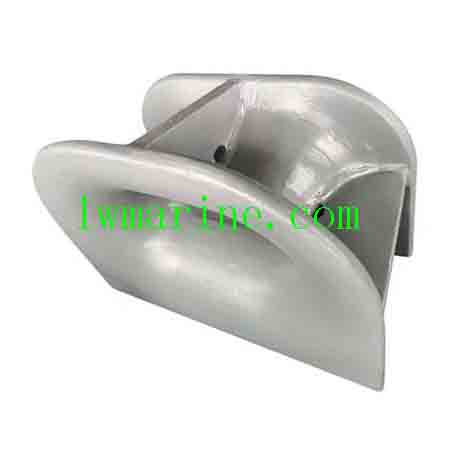

JIS F 2007-1976 Mooring Chock (Type A): A Premium Bulwark-Mounted Solution
The JIS F 2007-1976 mooring chock (Type A) is a premium bulwark-mounted chock designed to guide mooring ropes with precision. Crafted from cast steel, its oval shape ensures a smooth surface that reduces friction on the mooring rope, enhancing its durability and performance. The nominal size of this mooring chock ranges from 150mm to 500mm, offering flexibility for various mooring scenarios. Additionally, we can supply customized chocks to meet your specific needs. If you’re interested in our chocks, please feel free to contact us for more details.
Key Specifications:
- Model Type: JIS F 2007-1976 Mooring Chock (Type A)
- Material: Cast Steel
- Nominal Size: 150mm~500mm
- Weight: 15.1kg~115kg
- Welded Position: Bulwark
- Standard: JIS F 2007-1976
- Certificates: CCS, DNV, ABS, BV, LR, RS, KR
Detailed Size and Weight Chart for JIS F 2007-1976 Mooring Chocks (Type A):
| Model No. | Size A (mm) | Size B (mm) | Size C (mm) | Size D (mm) | Size E (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1 | 150 | 150 | 300 | 110 | 260 | 15.1 |
| 2 | 200 | 200 | 368 | 150 | 318 | 20.5 |
| 3 | 250 | 250 | 430 | 200 | 380 | 26.9 |
| 4 | 300 | 300 | 500 | 250 | 450 | 42.7 |
| 5 | 350 | 350 | 560 | 250 | 460 | 50.8 |
| 6 | 400 | 400 | 632 | 250 | 482 | 76.3 |
| 7 | 450 | 450 | 700 | 250 | 500 | 102 |
| 8 | 500 | 500 | 760 | 250 | 510 | 115 |
Frequently Asked Questions (FAQs):
Q1: What are the main types of marine mooring chocks available?
A1: Mooring chocks come in various forms, including closed chocks, open chocks, no-roller chocks, and roller chocks, catering to different mooring needs.
Q2: What is the difference between deck-mounted chocks and bulwark-mounted chocks?
A2: Deck-mounted chocks are welded directly to the deck, while bulwark-mounted chocks are attached to the bulwark for added stability and support.
Q3: What materials are used to make the JIS F 2007-1976 mooring chock (Type A)?
A3: The JIS F 2007-1976 mooring chock (Type A) is crafted from high-quality cast steel, ensuring durability and strength.
Q4: Can I get customized marine mooring chocks according to my specific requirements?
A4: Absolutely! We offer customized mooring chocks tailored to your unique needs, ensuring optimal performance and satisfaction.
Q5: What certifications do your mooring chocks have?
A5: Our mooring chocks are certified by leading maritime authorities, including CCS, DNV, ABS, BV, LR, RS, and KR, ensuring compliance with international safety standards.
Please Note: The description might be incorrect, please contact us for confirmation.
