MOORING CHOCKS

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

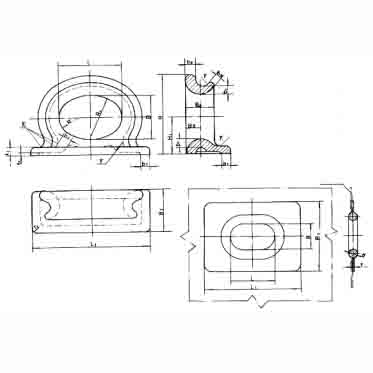

CB*34—76 265.YHS—008

TYPE A MOORING CHOCKS

表格

MAXIMUM STEEL ROPE DIAMETER	MAXIMUM HEMP ROPE CIRCUMFERENCE	MAXIMUM NYLON ROPE DIAMETER	L	L1	L2	B	B1	B2	t	b1	b2	b3	R	R1	HULL OPENING SIZE L3×B3
18.5	160	30	200	300	340	130	230	270	18	118	90	58	20	310×240	16.4
22.5	200	45	260	400	450	170	310	360	22	158	120	84	30	415×325	40.4
28.0	230	55	320	480	515	200	380	420	25	175	140	85	30	480×380	57.0
33.5	270	70	400	580	672	250	480	560	30	240	180	108	45	592×450	95.6
43.5	325	80	480	680	755	310	595	665	35	240	180	126	45	705×545	171.0

表格

MAXIMUM STEEL ROPE DIAMETER	MAXIMUM HEMP ROPE CIRCUMFERENCE	MAXIMUM NYLON ROPE DIAMETER	L	L1	L2	B	B1	B2	t	b1	b2	b3	R	R1	R2	HULL OPENING SIZE L3×B3	NUMBER OF BOLTS
18.5	160	35	200	300	340	130	230	270	18	22	58	15	140	310×240	12	M12	22.6
22.5	200	45	260	400	450	170	310	360	22	25	84	30	190	415×325	12	M16	49.3
28.0	230	55	320	480	515	200	380	420	25	30	85	30	220	480×380	16	M16	71.2
33.5	270	70	400	580	672	250	480	560	30	35	108	45	260	592×450	16	M20	118.0
43.5	325	80	480	680	755	310	595	665	35	40	126	45	300	705×545	20	M20	205.0

表格

MAXIMUM STEEL ROPE DIAMETER	MAXIMUM HEMP ROPE CIRCUMFERENCE	MAXIMUM NYLON ROPE DIAMETER	L	L1	B	B1	B2	B3	H	H1	R	R1	b1	b2	b3	r	r1	r2	r3	t1	t2
15.0	125	30	150	400	110	178	130	65	215	48	102	26	20	27	20	10	25	30	25	5	37.5
18.5	160	35	200	400	150	190	130	80	317	65	132	32	25	30	25	12	30	35	30	5	67.0
22.5	200	45	250	600	200	220	160	95	382	78	165	38	30	35	30	15	35	40	35	8	97.0
28.0	230	55	300	600	250	270	190	110	486	95	195	45	35	40	35	18	40	45	40	8	127.0
33.5	270	70	400	800	300	320	220	130	513	110	227	52	40	45	40	20	45	50	45	10	210.0
43.5	325	90	500	800	380	380	260	150	589	125	270	60	50	50	50	25	50	55	50	10	298.0

表格

MAXIMUM STEEL ROPE DIAMETER	MAXIMUM HEMP ROPE CIRCUMFERENCE	MAXIMUM NYLON ROPE DIAMETER	L	L1	B	B1	d	t	HULL OPENING SIZE L2×B2
–	90	22	120	270	5	220	30	220×180	3.9
15.0	125	30	160	300	8	280	40	280×230	8.4
18.5	160	35	200	350	8	360	50	360×290	17.2
22.5	200	45	260	400	10	440	60	440×350	30.0
28.0	230	55	320	500	10	520	70	520×400	48.8

Type D mooring chocks with size L×B=120×80mm: MOORING CHOCKS D120×80 CB*34-76

AS INDICATION: MOORING CHOCKS SIZE L×B=120×80mm FOR D TYPE MOORING CHOCKS MOORING CHOCKS D120×80 CB*34-76

Note: The description may be different with the product, please contact us for quotation.
