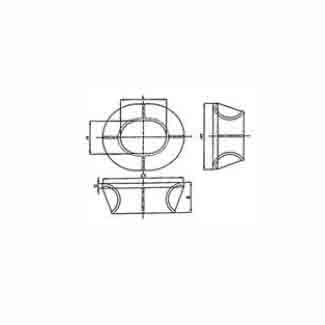

JIS F2030 Single Poit Mooring Pipes Type A
JIS F2030 Single Poit Mooring Pipes Type A
| Weight (KG) | Size (mm) | |||||
|---|---|---|---|---|---|---|
| L | L1 | H | H1 | B | C | |
| 400 | 400 | 780 | 300 | 680 | 350 | 65 |
| 500 | 500 | 940 | 400 | 840 | 400 | 70 |
| 600 | 600 | 1100 | 450 | 950 | 450 | 75 |
| 700 | 700 | 1260 | 500 | 1060 | 500 | 80 |
| 800 | 800 | 1420 | 600 | 1220 | 550 | 85 |
Note: The description may be different with the product, please contact us for quotation.
