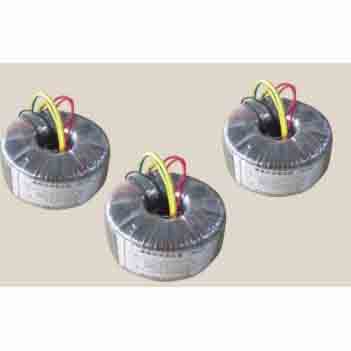

O Type Transformer
General
Make full use of silicon steel band direction, has the advantages of small volume, light weight, small leakage, high efficiency, small loss, strong overload capacity and other advantages of widely used in sound, lighting, medical equipment, environmental protection equipment, instrumentation, electrical equipment and other industries.
Dimension and Install Size
| Rated Capacity (VA) | Input Voltage (V) | Output Voltage (V) | Static Current (mA) | Efficiency (%) | Height (mm) | Diameter (mm) | Installation Hole (mm) |
|---|---|---|---|---|---|---|---|
| 10 | 220 | (Customized as required) | 10 | 90 | 28 | 55 | Φ3.5 |
| 20 | 10 | 90 | 33 | 60 | Φ3.5 | ||
| 30 | 10 | 90 | 33 | 62 | Φ3.5 | ||
| 40 | 10 | 90 | 42 | 65 | Φ4.0 | ||
| 50 | 10 | 90 | 42 | 65 | Φ4.0 | ||
| 60 | 10 | 90 | 45 | 65 | Φ4.0 | ||
| 80 | 10 | 90 | 45 | 70 | Φ4.0 | ||
| 100 | 15 | 93 | 46 | 75 | Φ4.0 | ||
| 120 | 15 | 93 | 46 | 75 | Φ4.0 | ||
| 150 | 15 | 93 | 57 | 80 | Φ4.0 | ||
| 200 | 15 | 93 | 57 | 80 | Φ4.0 | ||
| 300 | 20 | 94 | 70 | 105 | Φ4.0 | ||
| 400 | 20 | 94 | 70 | 105 | Φ4.0 | ||
| 500 | 20 | 94 | 70 | 105 | Φ4.0 | ||
| 600 | 30 | 95 | 80 | 110 | Φ4.0 | ||
| 800 | 30 | 95 | 80 | 115 | Φ4.0 | ||
| 1K | 40 | 95 | 80 | 115 | Φ4.0 | ||
| 1.2K | 40 | 95 | 100 | 130 | Φ5.0 | ||
| 1.5K | 40 | 95 | 100 | 130 | Φ5.0 | ||
| 2K | 40 | 95 | 100 | 130 | Φ5.0 | ||
| 3K | 40 | 95 | 115 | 150 | Φ5.0 | ||
| 4K | 40 | 95 | 115 | 150 | Φ5.0 | ||
| 5K | 40 | 95 | 115 | 150 | Φ5.0 | ||
| 6K | 50 | 95 | 135 | 160 | Φ6.0 | ||
| 8K | 50 | 95 | 135 | 170 | Φ6.0 | ||
| 10K | 60 | 95 | 135 | 180 | Φ6.0 | ||
| 15K | 60 | 95 | 160 | 185 | Φ6.0 | ||
| 20K | 90 | 95 | 160 | 200 | Φ6.0 | ||
| 25K | 120 | 95 | 220 | 230 | Φ6.0 | ||
| 30K | 120 | 95 | 220 | 230 | Φ6.0 |
Note: The description may be different with the product, please contact us for quotation.
