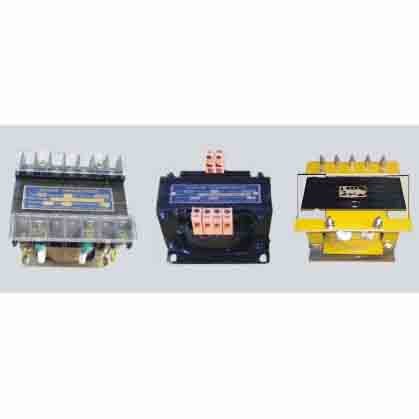

JBK3-JBK5, BK Transformer
General
JBK3-JBK5 BK series machine tool control transformer for AC 50-60Hz, input voltage less than 660V circuits, usually can be used for electrical machine control or local lighting and indicator light power.
Dimension and Install Size
| Type | Outer Dimensions (mm) L | Outer Dimensions (mm) W | Outer Dimensions (mm) H | Installation Size (mm) A | Installation Size (mm) B | Installation Hole (mm) d |
|---|---|---|---|---|---|---|
| JBK-40 | 78 | 72 | 80 | 56 | 51 | 5 |
| JBK-100 | 85 | 85 | 90 | 64 | 60 | 5 |
| JBK-160 | 96 | 95 | 102 | 74 | 70 | 6 |
| JBK-250 | 96 | 105 | 140 | 84 | 82 | 6 |
| JBK-400 | 105 | 135 | 146 | 94 | 91 | 7 |
| JBK-500 | 160 | 118 | 160 | 122 | 89 | 7 |
| JBK-630 | 160 | 145 | 145 | 120 | 102 | 10 |
| JBK-800 | 200 | 170 | 170 | 140 | 120 | 10 |
| JBK-1000 | 200 | 160 | 152 | 150 | 100 | 10 |
| JBK-1600 | 260 | 220 | 180 | 180 | 120 | 12 |
| JBK-2000 | 260 | 200 | 200 | 220 | 160 | 12 |
| JBK-2500 | 300 | 200 | 200 | 180 | 120 | 12 |
| JBK-3000 | 280 | 200 | 200 | 220 | 160 | 12 |
| JBK-4000 | 300 | 200 | 220 | 230 | 180 | 12 |
| JBK-5000 | 320 | 210 | 240 | 220 | 170 | 12 |
| JBK-40 | 78 | 72 | 80 | 56 | 51 | 5 |
| JBK-100 | 85 | 85 | 90 | 64 | 60 | 5 |
| JBK-160 | 96 | 95 | 102 | 74 | 70 | 6 |
| JBK-250 | 96 | 105 | 140 | 84 | 82 | 6 |
| JBK-400 | 105 | 135 | 146 | 94 | 91 | 7 |
| JBK-500 | 160 | 118 | 160 | 122 | 89 | 7 |
| JBK-630 | 160 | 145 | 145 | 120 | 102 | 10 |
| JBK-800 | 200 | 170 | 170 | 140 | 120 | 10 |
| JBK-1000 | 200 | 160 | 152 | 150 | 100 | 10 |
| JBK-1600 | 260 | 220 | 180 | 180 | 120 | 12 |
| JBK-2000 | 260 | 200 | 200 | 220 | 160 | 12 |
| JBK-2500 | 300 | 200 | 200 | 180 | 120 | 12 |
| JBK-3000 | 280 | 200 | 200 | 220 | 160 | 12 |
| JBK-4000 | 300 | 200 | 220 | 230 | 180 | 12 |
| JBK-5000 | 320 | 210 | 240 | 220 | 170 | 12 |
Note: The description may be different with the product, please contact us for quotation.
