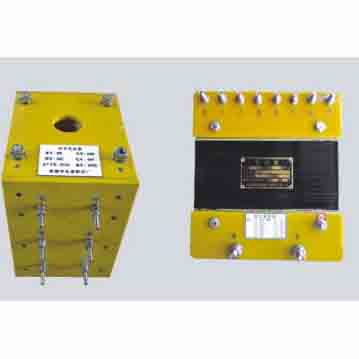

Marine Reactor, Charge Transformer
General
The marine reactor can roughly restrict current of the marine and warship units in which the diesel generating sets should be the same capacity, three phases and AC.
Major need for DC power supply circuit, through the rectifier output DC, used for battery charging. With adjustable voltage, wide applicable range, simple operation etc.
Technical Parameters
| Type | Single capacity of generator (KW) | Length × Width × Height L×B×H (mm) | A (mm) | Weight (kg) |
|---|---|---|---|---|
| BDK-24 | 24 | 154 × 202 × 236 | 118 | 10 |
| BDK-40 | 40 | 158 × 206 × 230 | 122 | 12 |
| BDK-64 | 64 | 172 × 222 × 230 | 132 | 13 |
| BDK-90 | 90 | 168 × 218 × 250 | 132 | 15 |
| BDK-120 | 120 | 178 × 228 × 280 | 132 | 19 |
| BDK-250 | 250 | 204 × 257 × 280 | 152 | 29 |
| BDK-400 | 400 | 220 × 284 × 280 | 170 | 36 |
| BDK-630 | 630 | 234 × 298 × 320 | 184 | 50 |
Note: B=”并联” (Parallel), D=”电抗” (Reactor), K=”科” (Subject).
Note: The description may be different with the product, please contact us for quotation.
