Marine Offshore Platform Transformers

Marine / Offshore Platform Transformers

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:
Marine / Offshore Platform Transformers CSCD (PSCD), CSCFD (PSCFD)
Product Introduction

CSCD (PSCD) & CSCFD (PSCFD) series tertiary-wind insulation cast resin main/offshore platform dry-type transformer (hereinafter referred to as “dry-type transformer”) is a new generation of dry-type transformer produced by our company using the epoxy-resin casting technology, developed over the last 10 years. It has excellent performance and reliable quality; it is the most advanced product of its kind internationally. After more than 10 years of continuous innovation and development since its inception, the product has evolved through three generations of structure. The first-generation product adopted a pure insulating cast-resin structure, and has been widely used in industrial and mining enterprises, airports, stations, ships, ports, and various places such as civil construction. The second-generation thin resin insulation structure represents a significant leap forward compared with the first-generation product. The third-generation thin insulation structure uses a new insulating material and casting technology, which is more resistant to impact and has better anti-short-circuit capability. The performance is significantly improved, including higher mechanical strength, stronger capacity against short circuit, stronger anti-impact and anti-shock capability, and it is more resistant to heat and cold. The product’s performance in terms of reliability, capacity for short-circuit, impact, environment, explosion-proof, and resistance to moisture, salt fog, and mold has all been significantly improved compared with the second-generation thin insulation casting structure product, and has been well received by the vast majority of users.
With the advantage of being safe, reliable, and low-maintenance, this series of products is widely used in the power industry, airport terminals, airports, subways, power plants, national grids, telecommunications, airports, gas stations, hotels, and industrial and mining enterprises, as well as high-rise buildings, commercial centers, communication facilities, nuclear power plants, and various large-scale power station projects.

Technical Specifications
Item Specification
Standard GB6450, GB1094, GB/T10228, IEC60076
Capacity Range 50~10000KVA
Voltage Class 3~35KV
Tapping Range ±5% or ±2×2.5% or as customer requirement
Frequency 50Hz or 60Hz
Phase Number 3-Phase or Single-Phase
Vector Group Dyn11/ Yyn0 as per customer requirement
Short Circuit Impedance As per customer requirement
Cooling Method Natural Air Cooling (AN) or Forced Air Cooling (AF)
Insulation Level F or H as per customer requirement
Insulation Level 3KV and 6KV Class: 10KV and 35KV; 10KV Class: 35KV and 65KV; 35KV Class: 70KV and 170KV
Protection Class IP00, IP20, IP22, IP23
Service Condition Altitude: ≤1000m; Ambient Temperature: -25℃~+45℃; Relative Humidity: ≤95%; Should not be influenced by dew, oil & salt vapor, molds.
Technical Data
Rated Capacity (KVA) Number of Phases Primary Voltage (kV) Secondary Voltage (kV) Tapping Range (%) Vector Group Short Circuit Impedance (%) No-load Loss (W) Load Loss (W) (75℃) No-load Current (%)
50 3 6 0.4 ±5 D yn11 4 220 1380 3
80 6.3 0.4 4 300 1930 2.5
100 6.6 0.4 4 340 2280 2.5
125 10 0.4 ±2×2.5 Dyn11 4 350 2580 2
160 35 0.4 4 440 3140 2
200 4 550 3800 2
250 4 620 4300 2
315 4 820 5400 1.5
400 4 950 6600 1.5
500 4 1120 8000 1.5
630 4 1300 9500 1
800 4 1600 11600 1
1000 4 1800 13800 1
1250 4 2150 16000 1
1600 4 2600 20000 1
2000 4 3000 25000 0.8
2500 4 3800 28000 0.8
3150 6 0.4 6 5000 33000 0.8
4000 6.3 0.4 6 6000 38000 0.8
5000 10 0.4 6 7000 45000 0.7
6300 6 8400 52000 0.7
8000 6 11000 66000 0.6
10000 6 13000 80000 0.6
6 14000 95000 0.5

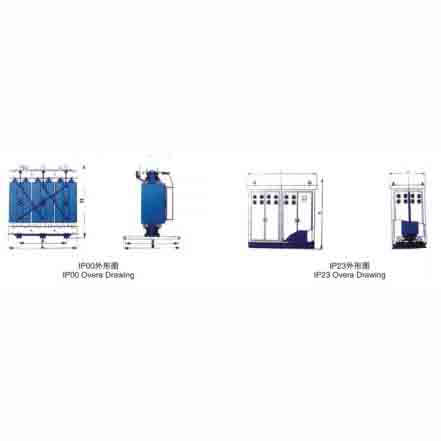

Dimension and Install Size
Rated Capacity (KVA) IP00 Dimensions (mm) L IP00 Dimensions (mm) B IP00 Dimensions (mm) H IP20 Dimensions (mm) L IP20 Dimensions (mm) B IP20 Dimensions (mm) H IP23 Dimensions (mm) L IP23 Dimensions (mm) B IP23 Dimensions (mm) H Installation Size (mm) A Installation Size (mm) B1 Weight (kg)
50 1200 600 1300 1300 800 1400 1400 800 1500 660 660 400
80 1200 650 1350 1300 800 1450 1400 800 1550 660 660 500
100 1250 650 1350 1350 800 1450 1450 800 1550 660 660 550
125 1300 650 1400 1400 800 1500 1500 800 1600 660 660 650
160 1300 650 1450 1400 800 1550 1500 800 1650 660 660 750
200 1350 650 1500 1450 800 1600 1550 800 1700 660 660 800
250 1400 700 1500 1500 800 1600 1600 800 1700 820 820 880
315 1500 700 1550 1600 800 1650 1600 800 1750 820 820 1050
400 1500 750 1650 1600 800 1750 1650 800 1850 820 820 1200
500 1600 750 1700 1700 800 1800 1700 800 1900 820 820 1350
630 1700 750 1850 1800 800 1950 1800 800 2050 820 820 1600
800 1800 800 1950 1900 900 2050 1950 900 2150 820 820 1900
1000 1900 800 2000 2000 900 2100 2000 900 2200 820 820 2050
1250 2000 800 2100 2100 900 2200 2100 900 2300 1070 1070 2400
1600 2100 800 2150 2200 900 2300 2200 900 2400 1070 1070 2800
2000 2200 800 2250 2300 900 2350 2300 900 2450 1070 1070 3200
2500 2300 800 2350 2400 900 2450 2400 900 2550 1070 1070 3600
3150 2400 900 2500 2500 1000 2600 2500 1000 2700 1070 1070 4400
4000 2500 900 2600 2600 1000 2700 2600 1000 2800 1070 1070 5300
5000 2600 950 2750 2700 1100 2850 2700 1100 2950 1470 1470 6300
6300 2800 950 2850 2900 1100 2950 2900 1100 3050 1470 1470 7500
8000 3000 1050 2900 3000 1200 3000 3000 1200 3100 1470 1470 9500
10000 3200 1050 3100 3300 1200 3200 3300 1200 3300 1470 1470 11000

Note: The description may be different with the product, please contact us for quotation.
