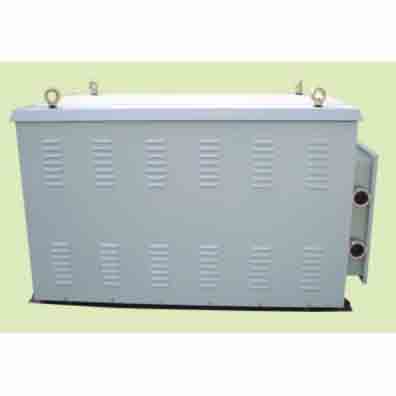

CSGD II & CSGD III Marine Transformer

Type	Rated Capacity (KVA)	Appearance Figure	Outer Dimensions (mm) L	Outer Dimensions (mm) B	Outer Dimensions (mm) H	Installation Size (mm) L1	Installation Size (mm) B1	Installation Size (mm) d	Weight (kg)
CSGD II	15	One bank of three single-phase transformers (with diagram)	600	555	615	620	390	12	230
	20		660	590	655	660	410	14	280
	25		695	605	690	680	440	14	305
	30		730	605	690	680	440	14	315
	40		760	630	700	700	460	14	365
	50		830	680	820	820	540	18	420
	60		840	690	830	830	550	18	430
	80		900	700	890	840	550	18	460
	100		950	710	930	850	600	18	510
	125		1020	740	930	880	620	18	610
	150		1050	780	990	910	680	18	680
	160		1075	820	980	940	680	18	730
	200		1120	860	1000	990	720	18	790
	250		1270	950	1050	1090	820	24	870
	315		1600	1050	1150	1180	830	24	1340
CSGD III	22.5	One bank of four single-phase transformers (with diagram)	735	555	615	660	390	12	270
	30		800	600	700	740	460	14	365
	40		810	600	700	740	460	14	370
	50		880	640	740	780	500	18	430
	60		890	650	750	790	500	18	440
	80		890	650	750	790	500	18	440
	100		930	680	800	860	550	18	520
	125		950	690	800	860	550	18	530
	160		1000	820	950	900	660	18	700
	200		1100	860	1000	990	720	18	790
	250		1200	920	1080	1050	820	24	970
	315		1350	960	1080	1050	820	24	1080
	400		1600	1050	1150	1180	830	24	1340
	500		1900	1120	1250	1250	930	24	1700

Note: The description may be different with the product, please contact us for quotation.
