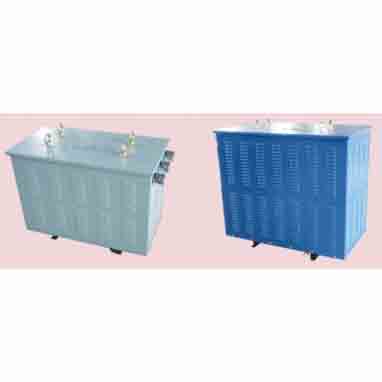

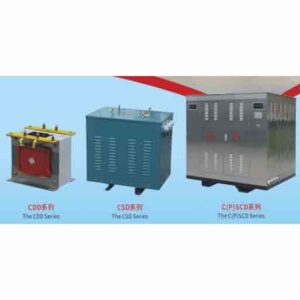

CSD Marine Transformer

Rated Capacity (KVA)	Number of Phase	Primary Voltage (V) 50Hz	Primary Voltage (V) 60Hz	Secondary Voltage (V) 50Hz	Secondary Voltage (V) 60Hz	Connection Symbol	Short Circuit Impedance (%)	No-load Loss (W)	Load Loss (W)	No-load Current (%)	Degree of Protection
3	3	410	450	400	450	Yd11	3.5	65	95	14	IP22
5		400	440	230	230	Dd0	3.5	75	145	12
10		390	430	115	115	Yy0	3.5	120	260	10
15						Dy	3.5	140	355	8
20							3.5	175	480	8
25							3.5	220	520	8
30							3.5	250	600	6
40							3.5	280	820	5
50							3.5	350	1000	5	IP23
60							3.5	420	1200	5
80							3.5	530	1700	4
100							3.5	620	2100	4
125							3.5	740	2600	4
160							3.5	960	3100	4
200							3.5	1100	3800	4
250							3.5	1400	4500	3.5
315							4.0	1500	5600	3.5
400							4.0	1800	7500	3
500							4.0	2100	9600	3

Rated Capacity (KVA)	Appearance Figure	Outer Dimensions (mm) L	Outer Dimensions (mm) B	Outer Dimensions (mm) H	Installation Size (mm) L1	Installation Size (mm) B1	Installation Size (mm) d	Weight (kg)
3	I	480	360	520	270	200	12	60
5		535	370	530	270	230	12	75
10		600	400	590	310	250	14	105
15		650	420	600	310	270	14	135
20		680	480	700	350	280	14	150
25		720	510	720	370	300	14	175
30		750	540	730	400	310	14	185
40		810	570	770	430	340	14	210
50		850	600	800	470	350	14	225
60		880	620	820	480	370	14	240
80		920	680	860	530	390	14	290
100		980	740	920	580	420	14	350
125		1020	800	980	640	450	14	400
160		1080	860	1040	690	500	14	480
200		1160	910	1080	720	520	20	560
250		1240	960	1180	760	560	20	650
315		1320	1020	1240	820	600	20	800
400		1460	1080	1360	860	640	20	1000
500		1560	1160	1500	920	680	24	1200
		1800	1280	1680	1020	750	24	1800

Note: The description may be different with the product, please contact us for quotation.
