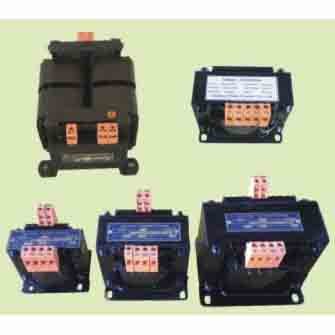

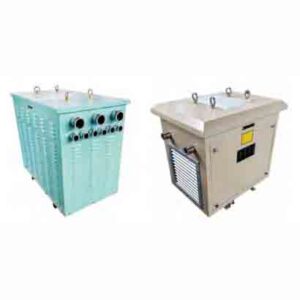

CXB Marine Transformer & JDG2-0.5 Voltage Transformer
General
CXB series marine small transformers can be used as the control power for ship general equipment, and power for local lighting, indicator light.
JDG2-0.5 series voltage transformer are suitable for frequency 50-60Hz, rated voltage 0.1KV power systems, for voltage, electric energy measurement and relay protection.
Dimension and Install Size
| Type | Rated Capacity (VA) | Appearance Figure | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) | Weight (kg) | Outer Dimensions (mm) L | Outer Dimensions (mm) B | Outer Dimensions (mm) H | Installation Size (mm) L1 | Installation Size (mm) B1 | Installation Size (mm) d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CXB | 40 | (Diagram of shell type structure provided in the source) | 5 | 45 | 12 | 84 | 85 | 85 | 86 | 66 | 60 | 5 | |
| 63 | 6 | 60 | 11 | 85 | 85 | 85 | 86 | 66 | 60 | 5 | |||
| 100 | 9 | 75 | 10 | 84 | 85 | 85 | 86 | 66 | 60 | 5 | |||
| 160 | 12 | 90 | 9 | 85 | 90 | 100 | 86 | 60 | 6 | ||||
| 250 | 14 | 120 | 8 | 86 | 100 | 110 | 84 | 74 | 5 | ||||
| 315 | 20 | 175 | 7 | 86 | 100 | 115 | 84 | 74 | 6 | ||||
| 400 | 25 | 220 | 6 | 92 | 120 | 130 | 100 | 84 | 6 | ||||
| 500 | 30 | 280 | 6 | 92 | 120 | 135 | 100 | 84 | 6 | ||||
| 630 | 35 | 340 | 6 | 105 | 140 | 150 | 120 | 100 | 6 | ||||
| 800 | 40 | 410 | 5.5 | 110 | 160 | 160 | 125 | 100 | 6 | ||||
| 1000 | 45 | 500 | 5 | 115 | 160 | 175 | 125 | 100 | 6 | ||||
| 1250 | 60 | 610 | 5 | 120 | 180 | 180 | 145 | 125 | 10 | ||||
| 1600 | 80 | 880 | 4.5 | 125 | 190 | 190 | 150 | 130 | 10 | ||||
| 2000 | 105 | 1060 | 4 | 130 | 190 | 195 | 150 | 130 | 10 | ||||
| 2500 | 125 | 1600 | 3.5 | 150 | 200 | 200 | 130 | 130 | 10 | ||||
| JDG2-0.5 | 100 | (Diagram of shell type structure provided in the source) | – | – | – | – | – | 88 | 105 | 100 | 84 | 74 | 5 |
Note: The description may be different with the product, please contact us for quotation.
