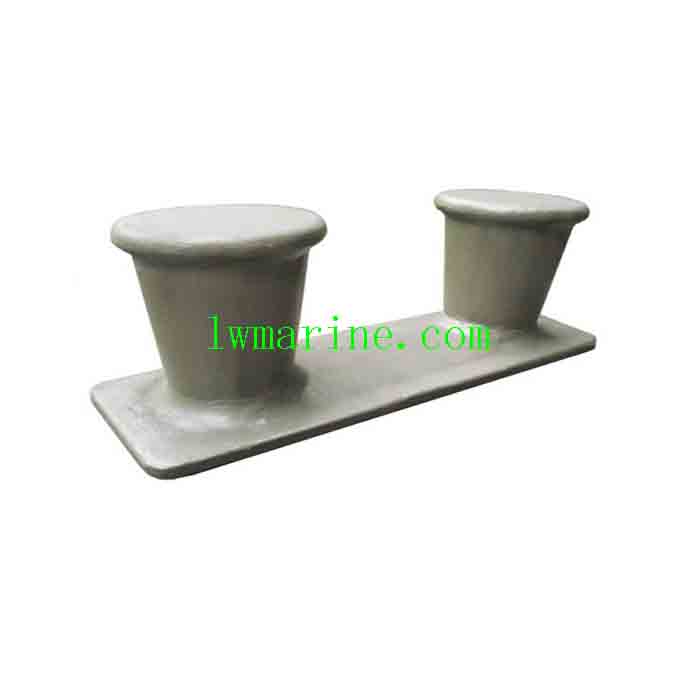

Type U.S.A Mooring Bollard for Enhanced Ship Anchoring
Our Type U.S.A mooring bollard stands out as a top-tier choice among double bitt mooring bollards, specifically designed to meet the rigorous demands of maritime anchoring. This bollard comes in two nominal diameters, DF-491 and DF-498, catering to diverse mooring requirements. In addition to the U.S. type bollard, we offer an extensive selection of other standard marine bollards, including JIS F2001 bollards, DIN82607 bollards, GB554-83 bollards, GB554-96 bollards (featuring simple, inserted, and cross bollard variants), GB556-65 welded inclined bollards, GB/T 10106-88 cross bitts, CVI bollards, and various dock bollards. For those seeking tailored solutions, we also provide custom-made bollards to match specific needs. Contact us today to explore our comprehensive range of marine mooring bollards.
Key Features of Type U.S.A Mooring Bollard:
- Nominal Diameters: Available in DF-491 and DF-498, ensuring versatility in mooring applications.
- Weight Options: Choose from 449kg or 612kg, depending on your anchoring requirements.
- Precise Size Specifications: Refer to the detailed specification form below for exact dimensions.
- Durable Material: Constructed from high-quality cast steel or cast iron for long-lasting performance.
- Surface Finishes: Options include polished, galvanized, and a variety of colors such as red and grey, to suit your aesthetic preferences.
- Certified Quality: Compliant with international standards, including CCS, ABS, LR, BV, ensuring reliability and safety.
- Customization Available: We supply customized bollards tailored to your specific mooring needs.
Specification Table for Type U.S.A Mooring Bollard:
| Nominal Dia. | Weight (kg) | Size (mm) – A | Size (mm) – B | Size (mm) – C | Size (mm) – D | Size (mm) – E | Size (mm) – G |
|---|---|---|---|---|---|---|---|
| DF-491 | 449 | 305 | 1524 | 457 | 381 | 343 | 571 |
| DF-498 | 612 | 355 | 1676 | 533 | 444 | 330 | 667 |
FAQs:
- Q: What are the primary applications of the Type U.S.A mooring bollard?
A: The Type U.S.A mooring bollard is primarily used for anchoring ships and vessels in ports, harbors, and other maritime settings, providing a secure point for mooring lines. - Q: Can I choose the material for my mooring bollard?
A: Yes, our Type U.S.A mooring bollards are available in both cast steel and cast iron, allowing you to select the material that best suits your application and environmental conditions. - Q: Are there different surface finishes available for the bollard?
A: Absolutely! We offer a range of surface finishes, including polished, galvanized, and various colors, to enhance the appearance and durability of your mooring bollard. - Q: How do I know which nominal diameter to choose for my mooring needs?
A: The choice of nominal diameter depends on factors such as the size of your vessel, the mooring conditions, and the required anchoring strength. Our team can provide expert guidance to help you select the appropriate bollard. - Q: Do you offer customization options for the Type U.S.A mooring bollard?
A: Yes, we specialize in producing customized bollards tailored to your specific mooring requirements, ensuring a perfect fit and optimal performance.
Please Note: The description might be incorrect, please contact us for confirmation.
