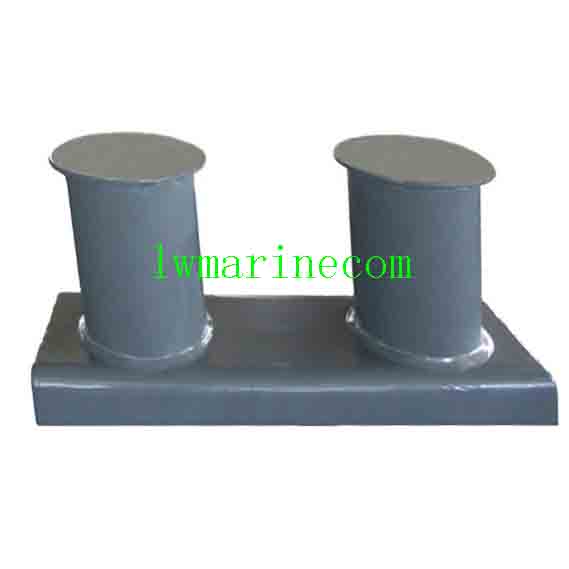

Marine Bow Bollard: Essential Dock Mooring Equipment
The Marine Bow Bollard is a crucial piece of marine hardware designed for secure mooring of ships at docks. As a vital component in maritime operations, it ensures the safety and stability of vessels by providing a reliable anchor point for mooring ropes. As a professional and reputable golden supplier, we offer a comprehensive range of marine bollards, including both standard and customized options tailored to meet the specific needs of our customers. For detailed product information or to discuss your requirements, please don’t hesitate to contact us.
Key Features of GB554-83 Bollard
- Premium Material: Constructed from high-quality cast steel, ensuring exceptional strength and durability.
- Double Bitt Design: Features a double bitt configuration for enhanced mooring capacity and flexibility.
- Adherence to Technic Standard GB554-83: Meets or exceeds industry standards for marine bollard performance and safety.
- Wide Range of Nominal Diameters: Available in nominal diameters from 100mm to 800mm, catering to various vessel sizes and mooring requirements.
- Heavy-Duty Weight Range: Weighing from 19kg to 3071kg, these bollards are built to withstand the rigors of heavy-duty marine environments.
- Protective Coatings: Finished with epoxy coating, bitumen paint, or anti-corrosion treatments to resist the elements and prolong service life.
- Marine Classification Certificates: Certified by leading maritime authorities such as ABS and CCS, ensuring compliance with international safety standards.
- Customizable Designs: Capable of producing bollards according to customer’s specific designs and drawings for a perfect fit.
Detailed Drawing Specifications for GB554-83 Bow Bollard
| Nominal Dia. (mm) | Weight (kg) | Size (mm) | |||
|---|---|---|---|---|---|
| D | L | B | H | ||
| 100 | 19 | 114 | 445 | 165 | 196 |
| 125 | 29 | 140 | 540 | 195 | 246 |
| 160 | 45 | 168 | 670 | 225 | 316 |
| 200 | 80 | 219 | 860 | 290 | 378 |
| 250 | 141 | 273 | 1065 | 360 | 470 |
| 315 | 264 | 325 | 1300 | 430 | 597 |
| 355 | 358 | 351 | 1475 | 480 | 663 |
| 400 | 499 | 402 | 1630 | 550 | 749 |
| 450 | 680 | 450 | 1840 | 620 | 841 |
| 500 | 911 | 508 | 2040 | 690 | 928 |
| 560 | 1208 | 560 | 2240 | 750 | 1025 |
| 630 | 1601 | 610 | 2510 | 820 | 1152 |
| 710 | 2252 | 712 | 2840 | 960 | 1294 |
| 800 | 3071 | 813 | 3240 | 1100 | 1480 |
Frequently Asked Questions (FAQs)
Q1: What is the maximum weight capacity of the GB554-83 bow bollard?
A1: The weight capacity varies depending on the nominal diameter of the bollard, ranging from 19kg to 3071kg. This ensures suitability for a wide range of vessel sizes and mooring requirements.
Q2: Are the GB554-83 bollards resistant to corrosion?
A2: Yes, our bollards are finished with protective coatings such as epoxy coating, bitumen paint, or anti-corrosion treatments to resist the harsh marine environment and prolong their service life.
Q3: Can I get a customized bollard design?
A3: Absolutely! We offer customizable designs according to your specific requirements and drawings, ensuring a perfect fit for your dock mooring needs.
Q4: What certifications do the GB554-83 bollards have?
A4: Our bollards are certified by leading maritime authorities such as ABS and CCS, ensuring compliance with international safety standards and regulations.
Q5: How do I choose the right nominal diameter for my bow bollard?
A5: The choice of nominal diameter depends on the size of your vessel and the mooring requirements. Our team can provide expert advice to help you select the most suitable bollard for your needs.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
