SHIP BOLLARD
GB/T554-2008
THIS PRODUCT CAN BE USED FOR BERTHING AND MOORING OF SHIPS.THE PRODUCT MEETS ISO9133-1977 AND JAPANESE STANDARD JISF200-1975.

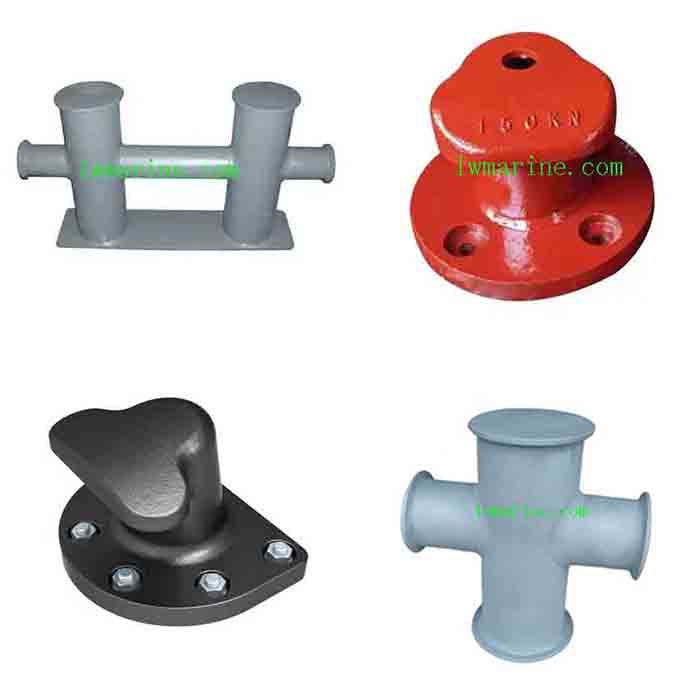

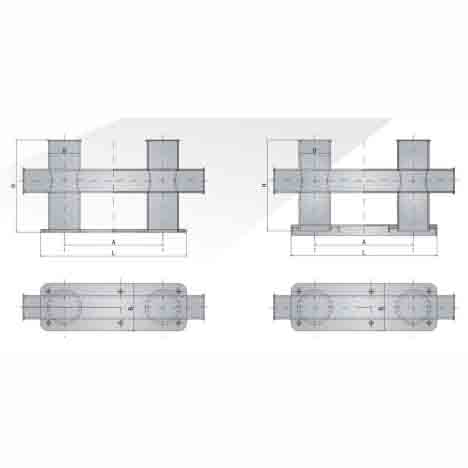

MODEL A COMMON BOLLARD BITT
MODEL B INSERT BOLLARD BITT
| Nominal diameter | Fracture load of cable KN | Max. diameter of suitable cable (perimeter) Tightwire | Max. diameter of suitable cable (perimeter) Tightwire | Max. diameter of suitable cable (perimeter) Tightwire | Max. diameter of suitable cable (perimeter) Rope girth | Complex rope diameter | D | L | B | H | A | Weight KG | H1 Timber deck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6X24 | 6X30 | 6X37 | |||||||||||
| 100 | 29 | 7.4 | 8.7 | — | 63 | 14 | 114 | 445 | 165 | 150 | 250 | 19 | — |
| 125 | 39 | 9.3 | 8.7 | 8.7 | 75 | 18 | 140 | 540 | 195 | 190 | 315 | 29 | — |
| 160 | 49 | 9.3 | 11.0 | 8.7 | 90 | 20 | 168 | 670 | 225 | 250 | 400 | 45 | 310 |
| 200 | 78 | 13.0 | 13.0 | 13.0 | 110 | 26 | 219 | 860 | 290 | 300 | 500 | 80 | 360 |
| 250 | 118 | 15.0 | 17.5 | 5.0 | 130 | 30 | 273 | 1065 | 360 | 380 | 630 | 141 | 440 |
| 315 | 196 | 20.5 | 21.5 | 19.5 | 170 | 39 | 325 | 1300 | 430 | 480 | 800 | 264 | 540 |
| 355 | 240 | 24.0 | 24.0 | 21.5 | 200 | 45 | 351 | 1475 | 480 | 530 | 900 | 358 | 590 |
| 400 | 314 | 26.0 | 28.0 | 24.0 | 235 | 53 | 402 | 1630 | 550 | 600 | 1000 | 499 | 660 |
| 450 | 382 | 30.0 | 30.0 | 28.0 | 250 | 56 | 450 | 1840 | 620 | 680 | 1130 | 680 | 740 |
| 500 | 451 | 32.0 | 32.5 | 30.0 | 280 | 64 | 508 | 2040 | 690 | 750 | 1250 | 911 | 810 |
| 560 | 549 | 36.0 | 36.5 | 32.5 | 310 | 70 | 560 | 2240 | 760 | 830 | 1380 | 1208 | 890 |
| 630 | 686 | 37.5 | 39.0 | 36.5 | 345 | 77 | 610 | 2510 | 820 | 940 | 1570 | 1601 | — |
| 710 | 804 | 41.0 | 43.0 | 39.0 | 375 | 84 | 712 | 2840 | 960 | 1050 | 1750 | 2252 | — |
| 800 | 981 | 44.5 | 47.5 | 43.0 | — | — | 813 | 3240 | 1100 | 1200 | 2000 | 3071 | — |
Notes:
-
Type B embedded bollard bolt diameter 160-500, H1 without wooden deck or 60mm.
-
According to customer requirements, can be installed baffle.
MODEL C BOLLARD BITT
| Nominal diameter | Max. diameter of tightwire | Max. Rope girth | D | L | B | H | Weight KG |
|---|---|---|---|---|---|---|---|
| 50 | 8.7 | 75 | 50 | 310 | 100 | 115 | 4.5 |
| 75 | 11.5 | 90 | 75 | 430 | 125 | 170 | 10.8 |
| 100 | 13.5 | 100 | 100 | 540 | 160 | 220 | 18.6 |
| 125 | 15.5 | 125 | 125 | 676 | 200 | 275 | 34.3 |
| 150 | 17.5 | 150 | 150 | 800 | 230 | 330 | 49.0 |
MODEL D BOLLARD BITT
| Nominal diameter | Max. diameter of tightwire | Max. Rope girth | D | B | H | A | Screw diameter | Screw Quantity | Weight KG |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 8.7 | 75 | 50 | 135 | 190 | 85 | M16 | 6 | 2.8 |
| 75 | 11.5 | 90 | 75 | 185 | 290 | 135 | M22 | 6 | 8.0 |
| 100 | 13.5 | 100 | 100 | 235 | 350 | 160 | M27 | 6 | 15.0 |
MODEL E DOUBLE-CROSS BOLLARD BITT
| Nominal diameter | Max. diameter of tightwire | Max. Rope girth | D | L | A | B | H | Screw diameter | Screw Quantity | Weight KG |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 8.7 | 75 | 50 | 310 | 180 | 130 | 190 | M12 | 6 | 7 |
| 75 | 11.5 | 90 | 75 | 450 | 275 | 170 | 290 | M16 | 6 | 16 |
| 100 | 13.5 | 100 | 100 | 550 | 350 | 200 | 350 | M18 | 6 | 27 |
| 125 | 15.5 | 125 | 125 | 660 | 425 | 240 | 425 | M22 | 6 | 49 |
| 150 | 17.5 | 150 | 150 | 770 | 500 | 270 | 500 | M22 | 6 | 71 |
| 175 | 19.5 | 175 | 180 | 850 | 530 | 320 | 550 | M24 | 6 | 103 |
| 200 | 22.5 | 200 | 203 | 960 | 600 | 360 | 795 | — | — | 181 |
| 250 | 28.0 | 225 | 245 | 1200 | 750 | 450 | 855 | — | — | 310 |
| 300 | 33.5 | 250 | 299 | 1440 | 900 | 540 | 1160 | — | — | 576 |
Example of designation:
Common (Model A)in nominal diameter of 200mm: bollard bitt A200 GB/T554-2008
Insert(Model B)in nominal diameter of 200mm: bollard bitt B200 GB/T554-2008
Double-cross(Model E)in nominal diameter of 250mm: bollard bitt E250 GB/T554-2008
Note: The description may be different with the product, please contact us for quotation.
