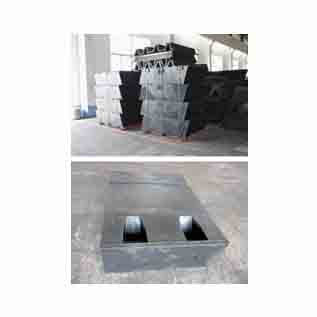

ME Elements Rubber Fender
Features
- Low reaction force and high energy absorption.
- The fenders can be combined into different types and sizes of fender systems according to performance requirements.
- Optimum performance can be achieved under perpendicular or angular compression.
Specification Sizes
| Spec. | H (mm) | A (mm) | B (mm) | D (mm) | L (mm) | a (mm) | p (mm) | n | M |
|---|---|---|---|---|---|---|---|---|---|
| ME300 | 300 | 47 | 94 | 94 | 2000 | 250 | 500 | 4 | M20 |
| ME400 | 400 | 63 | 125 | 124 | 2000 | 250 | 500 | 4 | M24 |
| ME500 | 500 | 87 | 158 | 142 | 2000 | 250 | 500 | 4 | M30 |
| ME550 | 550 | 87 | 172 | 170 | 2000 | 250 | 500 | 4 | M30 |
| ME600 | 600 | 87 | 188 | 199 | 2000 | 250 | 500 | 4 | M30 |
| ME750 | 750 | 118 | 235 | 310 | 2000 | 250 | 500 | 4 | M42 |
| ME800 | 800 | 129 | 250 | 240 | 2000 | 250 | 500 | 4 | M36 |
| ME1000 | 1000 | 162 | 322 | 2000 | 250 | 500 | 4 | M42 | |
| ME1250 | 1250 | 202 | 401 | 388 | 2000 | 250 | 500 | 4 | M48 |
| ME1450 | 1450 | 228 | 454 | 454 | 2000 | 250 | 500 | 4 | M48 |
| ME1600 | 1600 | 257 | 500 | 480 | 2000 | 250 | 500 | 4 | M56 |
Note: Other specifications can be manufactured upon users’ request.
Dynamic Performance
| Spec. | Rated Compression | Standard Reaction Force RO (kN) | Energy Absorption (kN·M) | Super High Reaction Force RH | Reaction Force (kN) | Energy Absorption (kN·M) | Performance Tolerance (%) |
|---|---|---|---|---|---|---|---|
| ±10% | |||||||
| ME300 | 57.5% | 110 | 15 | 161 | 22 | ||
| ME400 | 150 | 27 | 214 | 39 | |||
| ME500 | 187 | 43 | 267 | 61 | |||
| ME550 | 206 | 52 | 294 | 75 | |||
| ME600 | 224 | 62 | 320 | 89 | |||
| ME750 | 282 | 96 | 402 | 137 | |||
| ME800 | 299 | 110 | 428 | 157 | |||
| ME1000 | 374 | 172 | 534 | 245 | |||
| ME1250 | 467 | 268 | 667 | 383 | |||
| ME1450 | 543 | 361 | 775 | 516 | |||
| ME1600 | 599 | 440 | 855 | 628 |
Notes:
- The performance base is on 1000mm length.
- Other performance requirements can be custom – made.
- Other length fender dynamic performance needs to multiply on the basis of 1000mm length.
Attention please: The description may be different with the product, please contact us for quotation.
