CHINA PNEUMATIC RUBBER FENDER

The pneumatic rubber fenders are mainly used for transfer operations and berthing operation of all kinds of ships, submarines, docks and offshore platforms. Now we have two types: Floating Pneumatic Rubber Fender and Hydro-Pneumatic Rubber Fender.

Pneumatic rubber fenders are a high – quality buffer device with large energy absorption and low reaction force, mainly used for the mooring and berthing operations of various ships, submarines, docks, and offshore platforms. Currently, there are two types: floating pneumatic rubber fenders and hydro – pneumatic rubber fenders.

Features

Material choice: nature rubber
Environmental adaptation: -45°C ~ +55°C
Good air tightness
Long lifespan: 6 – 10 years
Guaranteed after – sale service: 12 months
Adaptable to the tide
Easy transport: foled in deflation for less volume

Characteristics

Material selection: natural rubber
Adaptation to environment: -45°C ~ +55°C
Good air tightness
Long service life: 6 – 10 years
After – sales service guarantee: 12 months
Adaptability to tidal changes
Easy transportation: can be folded when deflated to reduce volume

2.1 Floating Pneumatic Rubber Fender / 漂浮式充气橡胶护舷 (50K Pa/80K Pa)

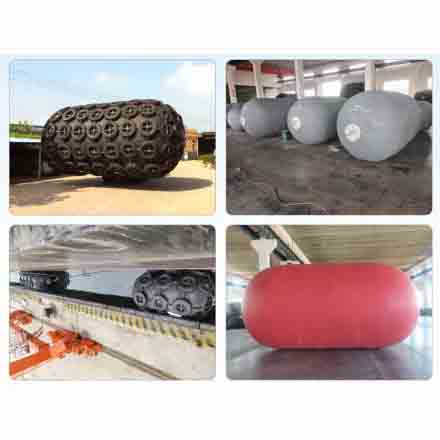

The floating pneumatic rubber fender is a world – leading anti – collision product. In compliance with ISO17357 – 1:2014(E), it is made of synthetic – tire – cord layers, with compressed air inside, can float on the water surface as a protection medium. Pneumatic rubber fender can absorb lots of energy and reduce the impact on the surface of the ship. Pneumatic rubber fender is available in three colors: black (common), gray and red.

The floating pneumatic rubber fender is a world – leading anti – collision device. The product complies with the ISO17357 – 1:2014(E) industry standard. The pneumatic rubber fender is made of a high – strength rubber fabric with a nylon cord as the skeleton material, filled with compressed air inside. It can float on the water surface and float up and down with the tidal changes, providing protection for marine operations. The pneumatic rubber fender is currently available in three colors: black (common), gray, and red.

Applications

In ports with extreme tidal variations
Ship – to – ship berthing
Offshore platform protection
Ship – to – dock berthing
Oil & Gas (typically FSRU)

Specifications

Size/规格 D*L	(50kPa) at 60% compression /压缩60%		(80kPa) at 60% compression /压缩60%
	GEA/吸能 (KNm)	RF/反力 (KN)	GEA/吸能 (KNm)	RF/反力 (KN)
0.5m x 1.0m	6	64	8	80
0.6m x 1.2m	10	86	13	108
0.7m x 1.5m	17	137	21	171
1.0m x 1.5m	32	181	40	266
1.35m x 2.5m	100	426	125	533
1.5m x 3.0m	153	579	191	724
1.7m x 3.0m	190	637	238	796
2.0m x 3.5m	308	875	385	1,094
2.5m x 4.0m	663	1,380	829	1,725
2.5m x 5.5m	932	2,010	1,658	2,513
3.0m x 5.0m	1,050	2,030	1,313	2,538
3.3m x 6.5m	1,814	3,015	2,534	3,961
3.5m x 6.0m	2,018	3,286	2,523	4,018
4.5m x 9.0m	4,752	5,747	6,633	7,551

Note: Customized size available.

2.2 Hydro – Pneumatic Rubber Fender / 半潜护舷

The hydro – pneumatic fender is a special version of the pneumatic fender developed for submarines. Hydro – pneumatic fenders are partially filled with water and air and equipped with a counterweight in order to keep them in a vertical position. This ensures that the submerged hull is properly protected by the fender at all times.

Hydro – pneumatic rubber fender is a special type of pneumatic rubber fender. The fender is partially filled with water and air, and the bottom is weighted to keep the fender in a vertical direction. Most of the fender body is submerged in water, ensuring that the part of the ship’s hull in contact with water can be protected, suitable for berthing at points below the waterline of the ship.

Applications

Submarine Jetties
Catamaran ships
Submarine Oil Rigs

Specifications

Fender Size/规格		(50kPa)
直径/ D (mm)	长度 /L (mm)	Water/冰 (%)	Compression /压缩 (%)	Initial Pressure/初始内压 (50kPa)
				GEA/吸能 (KNm)
2,000	4,000	60	45	99
		0	60	431
2,000	6,000	65	45	155
		0	60	647
2,500	5,500	65	45	223
		0	60	928
3,300	6,500	60	45	616
		0	60	1,913
