China Super Arch Rubber Fender
China Super Arch Rubber Fender is new generation of V type Rubber Fender. Super Arch Rubber fenders are simple and rugged which make them can be used in most severe conditions. Super Arch Rubber Fender can be fitted with face pads or connected to steel panels.
Advantages
- Low reaction force, high energy absorption.
- Simple and reasonable structure, long service time.
- Can be fitted with frontal panel, protect fenders and low down the HP.
- Large range of standard sizes, meet various design conditions.
Application
- Multi-user berths
- Small RoRo terminals
- Workboat berths
- Pontoon fenders

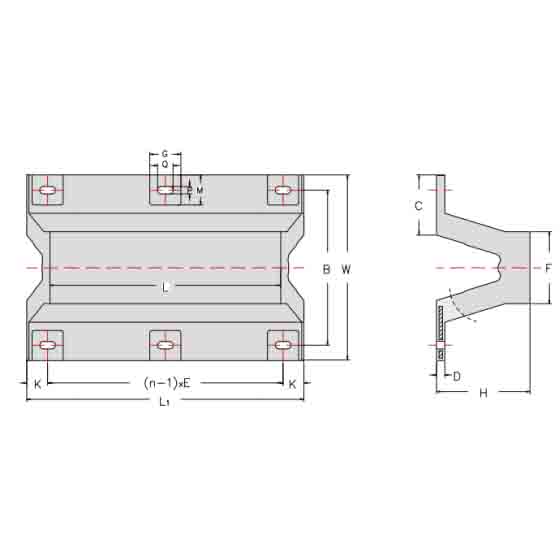

Specification

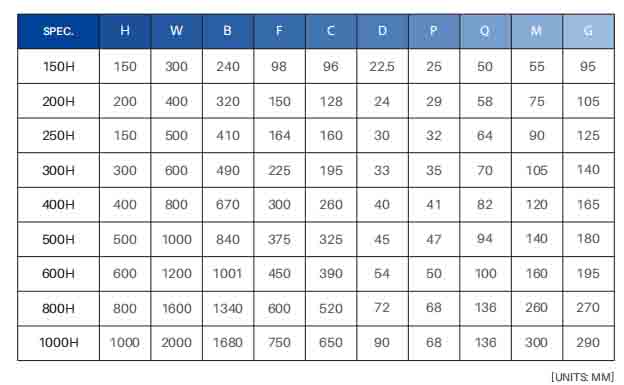

| SPEC. | 150H | 200H | 250H | 300H | 400H | 500H | 600H | 800H | 1000H |
|---|---|---|---|---|---|---|---|---|---|
| L1 [UNITS: MM] | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000, 3500 | 1000, 1500, 2000, 2500, 3000 |
| L [UNITS: MM] | 1075, 1575, 2075, 2575, 3075, 3075 | 1100, 1600, 2100, 2600, 3100, 3600 | 1125, 1625, 2125, 2625, 3125, 3625 | 1150, 1560, 2150, 2650, 3150, 3650 | 1200, 1700, 2200, 2700, 3200, 3700 | 1250, 1750, 2250, 2750, 3250, 3750 | 1300, 1800, 2300, 2800, 3300, 3800 | 1400, 1900, 2400, 2900, 3400, 3900 | 1500, 2000, 2500, 3000, 3500 |
| n | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5, 6 | 2, 3, 4, 4, 5 |
| E [UNITS: MM] | 855, 675, 620, 785, 785, 671 | 860, 680, 620, 785, 715, 672 | 865, 680, 620, 790, 715, 673 | 870, 685, 625, 790, 715, 674 | 900, 700, 635, 800, 725, 680 | 930, 715, 645, 810, 730, 686 | 1040, 770, 845, 760, 885 | 1100, 800, 700, 860, 775 | |
| K [UNITS: MM] | 110, 112.5, 107.5, 110, 107.5, 110 | 120, 120, 122.5, 120, 120, 120 | 130, 132.5, 132.5, 127.5, 132.5, 130 | 140, 140, 137.5, 140, 145, 140 | 150, 150, 147.5, 150, 150, 150 | 150, 150, 157.5, 160, 165, 160 | 170, 170, 167.5, 170, 170, 170 | 180, 180, 182.5, 180, 180 | 200, 200, 210, 200 |
Performance
| SPEC. PERFORMANCE | 150H* | 200H | 250H | 300H | 400H | 500H | 600H | 800H | 1000H |
|---|---|---|---|---|---|---|---|---|---|
| 52.5% RS | R: 129, E: 7 | R: 170, E: 11 | R: 270, E: 28 | R: 325, E: 41 | R: 430, E: 73 | R: 540, E: 113 | R: 645, E: 163 | R: 864, E: 290 | R: 1080, E: 450 |
| 55% RS | R: 174, E: 8 | R: 230, E: 14 | R: 375, E: 30 | R: 450, E: 44 | R: 600, E: 78 | R: 750, E: 120 | R: 895, E: 175 | R: 1200, E: 310 | R: 1490, E: 486 |
| 52.5% RH | R: 112, E: 6 | R: 150, E: 12 | R: 208, E: 22 | R: 248, E: 31 | R: 330, E: 55 | R: 415, E: 87 | R: 495, E: 125 | R: 664, E: 223 | R: 830, E: 349 |
| 55% RH | R: 151, E: 7 | R: 202, E: 13 | R: 288, E: 23 | R: 345, E: 33 | R: 460, E: 60 | R: 575, E: 93 | R: 690, E: 135 | R: 922, E: 239 | R: 1150, E: 374 |
| 52.5% RO | R: 84, E: 4 | R: 112, E: 10 | R: 172, E: 18 | R: 206, E: 26 | R: 275, E: 46 | R: 344, E: 72 | R: 412, E: 104 | R: 550, E: 185 | R: 688, E: 289 |
| 55% RO | R: 113, E: 5 | R: 152, E: 11 | R: 239, E: 19 | R: 286, E: 28 | R: 382, E: 49 | R: 478, E: 77 | R: 572, E: 111 | R: 764, E: 198 | R: 956, E: 310 |
| 52.5% RL | R: 56, E: 3 | R: 75, E: 6 | R: 148, E: 16 | R: 175, E: 22 | R: 235, E: 40 | R: 295, E: 62 | R: 354, E: 89 | R: 472, E: 159 | R: 590, E: 248 |
| 55% RL | R: 76, E: 4 | R: 105, E: 7 | R: 205, E: 17 | R: 245, E: 24 | R: 328, E: 43 | R: 410, E: 66 | R: 492, E: 95 | R: 655, E: 170 | R: 820, E: 265 |
- RS: Super high Reaction Force
- RH: High Reaction Force
- RO: Standard Reaction Force
- RL: Low Reaction Force
- R: Reaction Force
- E: Energy Absorption
- Rated Deflection: 52.5%
- Maximum Deflection: 55%
- *150H: Rated Deflection: 45%
- Performance tolerance: ±10%
The performance mentioned above is the performance for per meter length fender, Dynamic performance in different length shall be calculated by times the multiple of 1000mm length.
Attention please: The description may be different with the goods, please check with us when order.
