China Cylindrical Rubber Fender

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15-30 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

China Cylindrical Rubber Fender

China Cylindrical Rubber Fender has a long history. Cylindrical Rubber Fenders are simple and versatile as well as being easy to install. Their progressive reaction makes them ideal for berths serving large and small vessels, especially for the upper protection of gravity quay wall.

Advantages

  • Low reaction, reasonable energy absorption, low hull pressure.
  • Easy to install and maintain.
  • Suit to roll and pitch of berthing vessels.
  • Various installation, vertical, horizontal, diagonal.

Application

  • Bulk cargo berths.
  • General cargo quays.
  • RoRo and ferry terminals.
  • Fishing and workboat berths.
  • Pontoons and floating structures.
  • Tug havens.

Large Cylindricals

Large cylindricals (Φ900 – Φ1600mm) often use a support bar connected at each end to chains which go back to brackets or U-anchors on the quay wall.

Very Large Cylindricals

Very large cylindricals (≥Φ1600mm) may require special ladder brackets due to their weight. These are specially designed for each application.

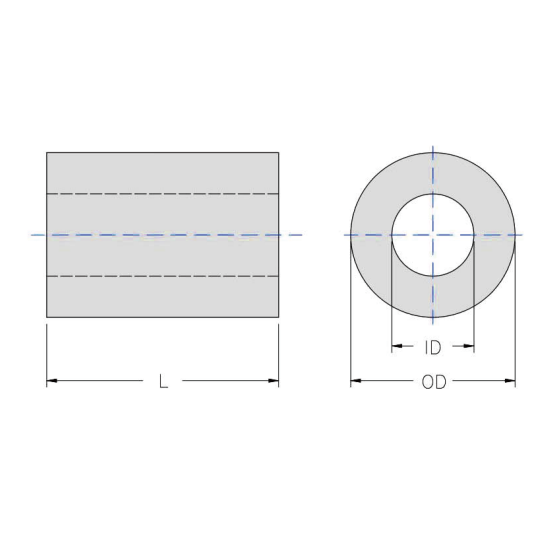

Specification Table

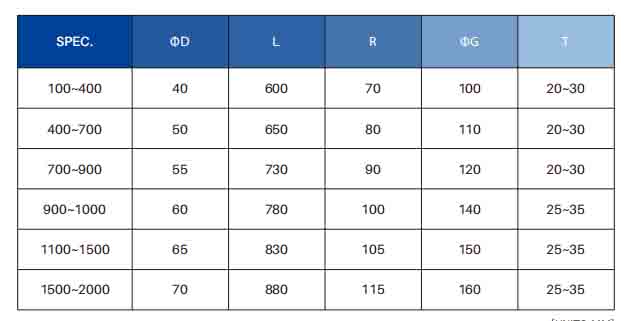

OD ID L ΦB CHAIN SHACKLE
800 400 1000 35 24 28
800 400 1500 45 28 35
900 450 2000 55 32 38
900 450 2500 65 34 44
900 450 3000 70 40 50
1200 600 1000 45 28 35
1200 600 1500 55 32 38
1200 600 2000 65 38 44
1300 650 2500 75 40 50
1300 650 3000 85 44 50
1400 700 1000 50 28 35
1400 700 1500 65 34 44
1500 750 2000 75 40 50
1500 750 2500 85 44 50
1500 750 3000 100 52 64
1600 800 1000 65 38 44
1600 800 1500 70 38 44
1600 800 2000 80 44 50
1600 800 2500 90 48 56
1600 800 3000 110 54 64

Performance Table

SPECIFICATION * OD × ID (MM) STANDARD REACTION FORCE R (KN) E(KNM) STANDARD REACTION FORCE R (KN) E(KNM)
150×75 44 1.5 73 2.3
200×100 60 2.6 95 4.2
250×125 75 4 120 6.5
300×150 89 6 143 9
350×175 104 8 167 13
400×200 119 10 191 17
500×250 148 16 239 26
600×300 179 24 286 37
700×350 208 31 334 50
800×400 237 41 383 66
900×450 268 52 430 84
1000×500 297 64 479 103
1100×550 331 77 528 129
1200×600 363 95 574 152
1300×650 392 108 623 179
1400×700 422 128 670 208
1500×750 451 147 718 238
1600×800 481 176 776 282
1700×850 511 206 824 338
1800×900 541 247 872 406
1900×950 570 288 920 487
2000×1000 653 321 1054 584

Attention please: The description may be different with the goods, please check with us when order.
